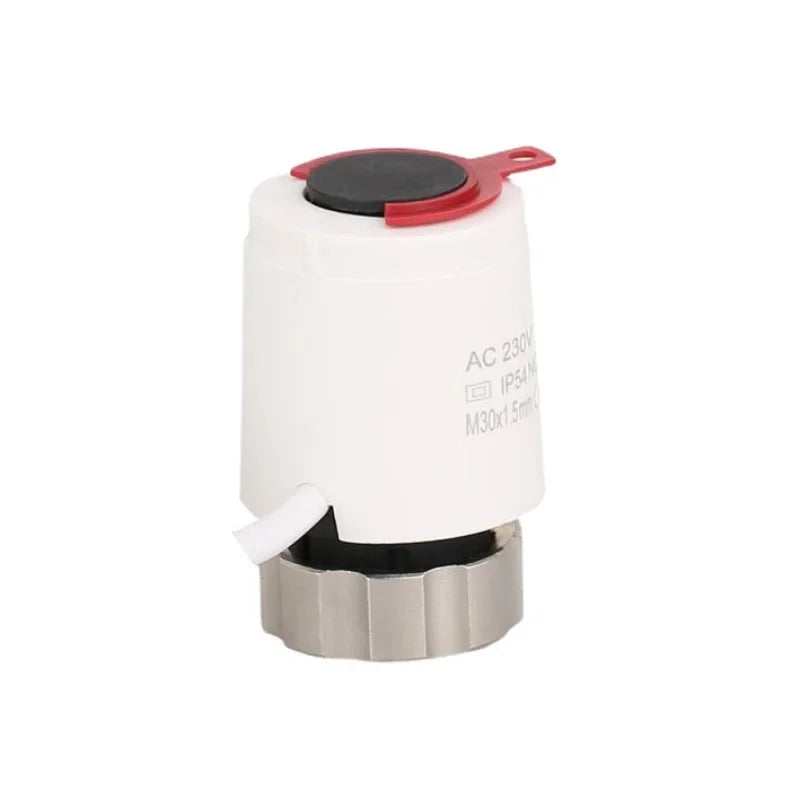

Electric Thermal Actuator Radiator for Manifold Underfloor Heating

Electric Thermal Actuator Radiator for Manifold Underfloor Heating

£15.16 GBP
£23.16 GBP £15.16 GBP
Sale Sold out
Tax included.
Color

Description

1005004083815889-NO-black

Electric Thermal Actuator Radiator for Manifold Underfloor Heating

Specifications:

  • Material: See detail
  • Model Number: N58A9FF100654
  • Certification: NONE
  • Type: Floor Heating Parts

Upgrade your underfloor heating system with this electric thermal actuator radiator designed for manifold installation. The high-quality material ensures durability and efficient performance. With its precise control mechanism, this actuator regulates the flow of heated water through the manifold, maintaining optimal room temperature and enhancing comfort. Ideal for both residential and commercial applications, this floor heating part is a reliable choice for achieving efficient and comfortable heating throughout your space.

3.5





230V Normally Closed Electric Thermal Actuator Radiator for Manifold Underfloor Heating NC Radiator Actuator Valve
OOTDTY

Overviews:
Electric heating actuators for branch valves, small valves, and dynamic balancing valves of the manifold are the electric drive parts of the control valves.

Features:
Paraffin propulsion element, driven by PTC heating
With spring return function, the valve is closed after power off
No noise during operation
Travel position indication
Nut connection installation method, simple, fast, easy to remove

Technical Parameters:
Voltage: 230VAC 50 / 60HZ
Stable power consumption: 3W
Thrust: 0110N
Stroke: 3.5mm
Full journey: 180s-300s

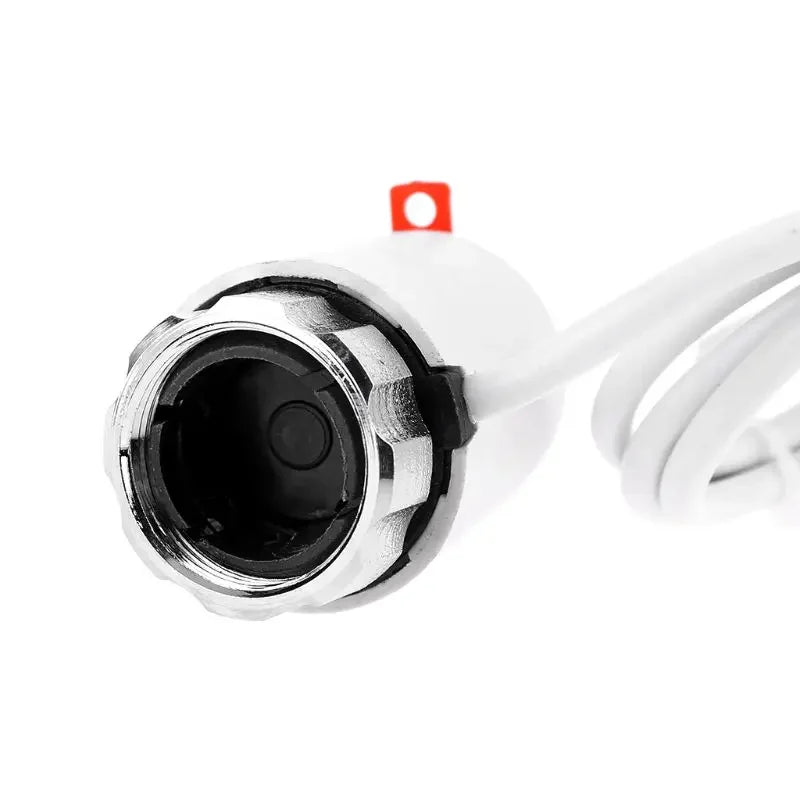

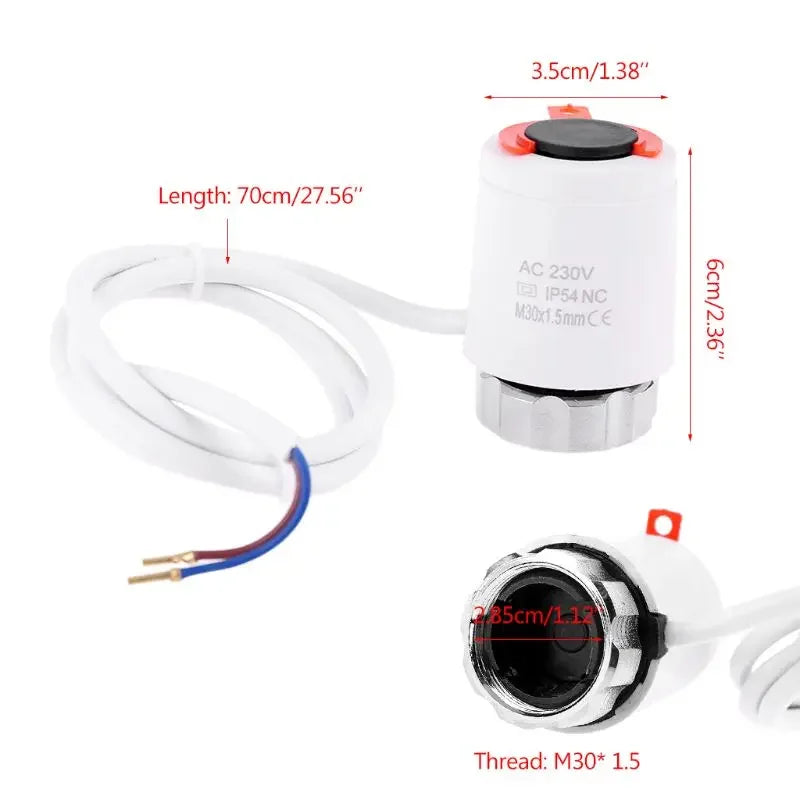

Connection size: M30 * 1.5
Ambient temperature: -5 ~ 50 ℃

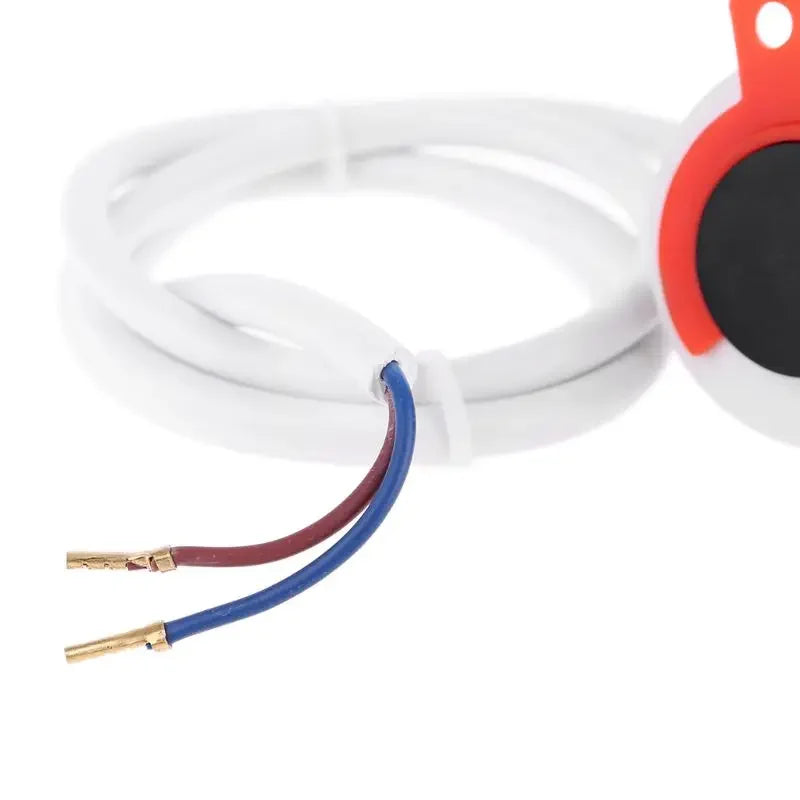

Cable length: 70cm (27inch)
Shell material: PC

Package included:
1 * Electric Thermal Actuator Radiator
