5-100 Meters Infrared Warm Floor Cable 12K 33ohm/m Electric Carbon Heating Wire Coil 2.0mm Fiber Wire Floor Hotline Thickening
5-100 Meters Infrared Warm Floor Cable 12K 33ohm/m Electric Carbon Heating Wire Coil 2.0mm Fiber Wire Floor Hotline Thickening
Regular price
£27.16 GBP
Regular price
£35.16 GBP
Sale price
£27.16 GBP
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
SKU:1005005192378143-100M
SPECIFICATIONS
Brand Name: EARUELETRIC
Material: Anti-flammable PC
Origin: Mainland China
Power: 150w/m2
Voltage: 220V
Type: Floor Heating Parts
Floor Heating Part Type: Floor Heating Cables
Model Number: AG-12K
Certification: CE
Voltage: 220V
Floor Heating Part Type: Floor Heating Cables
Type: Floor Heating Parts
Material: Anti-flammable PC
Resistance: 33 Ohm/m
Outer jacket: Silicone rubber
Voltage: 7~300 V
Choice: yes
Technical Datas:
Conductor resistance: 33±10% Ω/m
Infrared wavelength: 8UM-18UM
Colors: Red
Diameter: 3±0.1 MM ( Thicker and Safer; Толще и безопаснее)
The product can withstand max power: 25W/M
Leakage current: 0.05mA/m
Heating conductor: 12K
Heating temperature: based on the using length
Max enduring temperature: 200C degrees
Insulating material: Silicone rubber

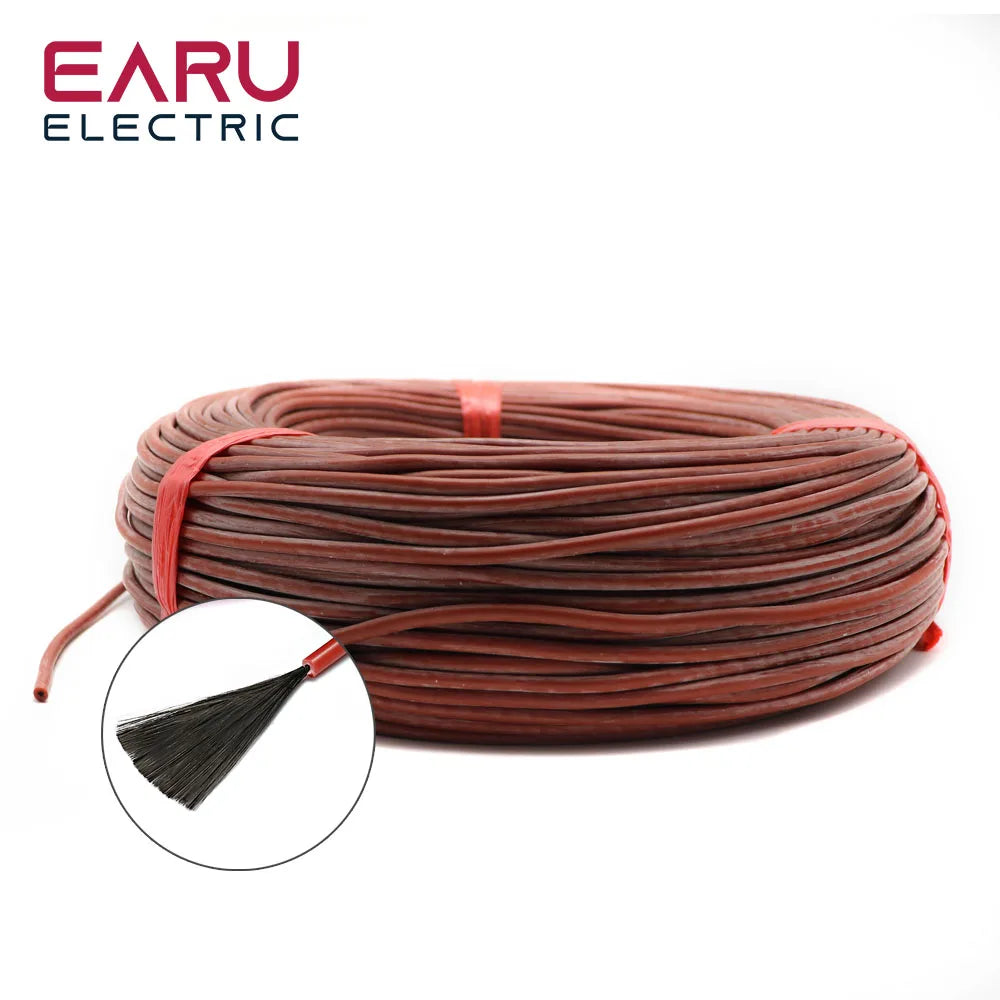

Product Name: Carbon fiber heating wire
What is the power of the cable? And what is heating temperature?
1. The power of the cable is based on the length that you use, you can calculate the power according to above examples.
Power = 5W/m, the temperature is about 30~40C degrees;
Power = 10W/m, the temperature is about 40~50C degrees;
Power = 15W/m, the temperature is about 50~60C degrees;
Power = 20W/m, the temperature is about 60~70C degrees;
Power = 25W/m, the temperatuee is about 70~90C degrees.
Please notice that this is for your reference, not exactly right because of different test conditions.
How to calculate power?
220V*220V÷(15meters*33Ω)=100W
100w/15m=6.66w/m
100w/15m=6.66w/m
- For example, using15m 12K carbon fiber cable on 220V, the power is:
220V*220V÷(10meters*33Ω)=150W
150w/10m=15w/m
150w/10m=15w/m
- For example, using 10m 12K carbon fiber cable on 220V, the power is:
12K=33ohm/meter
Voltage*Voltage÷resistance=electric power

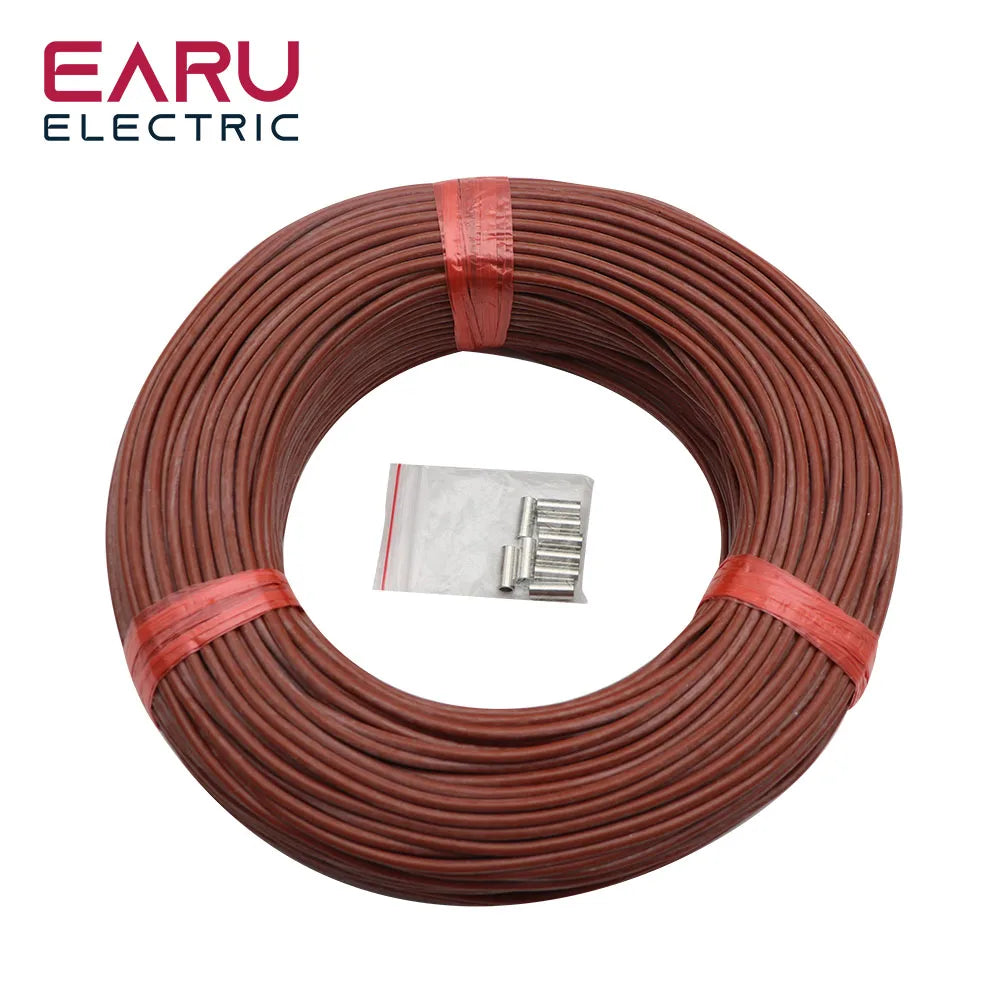

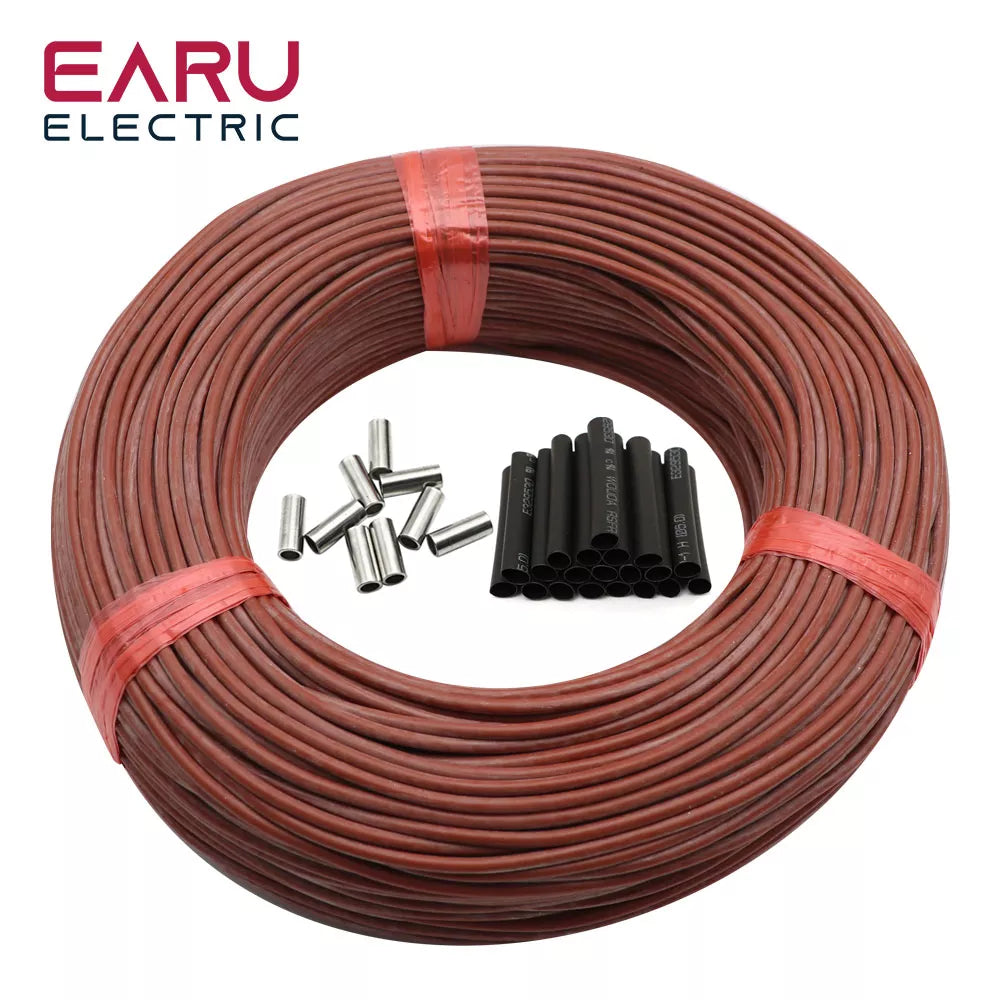

Package Includes:

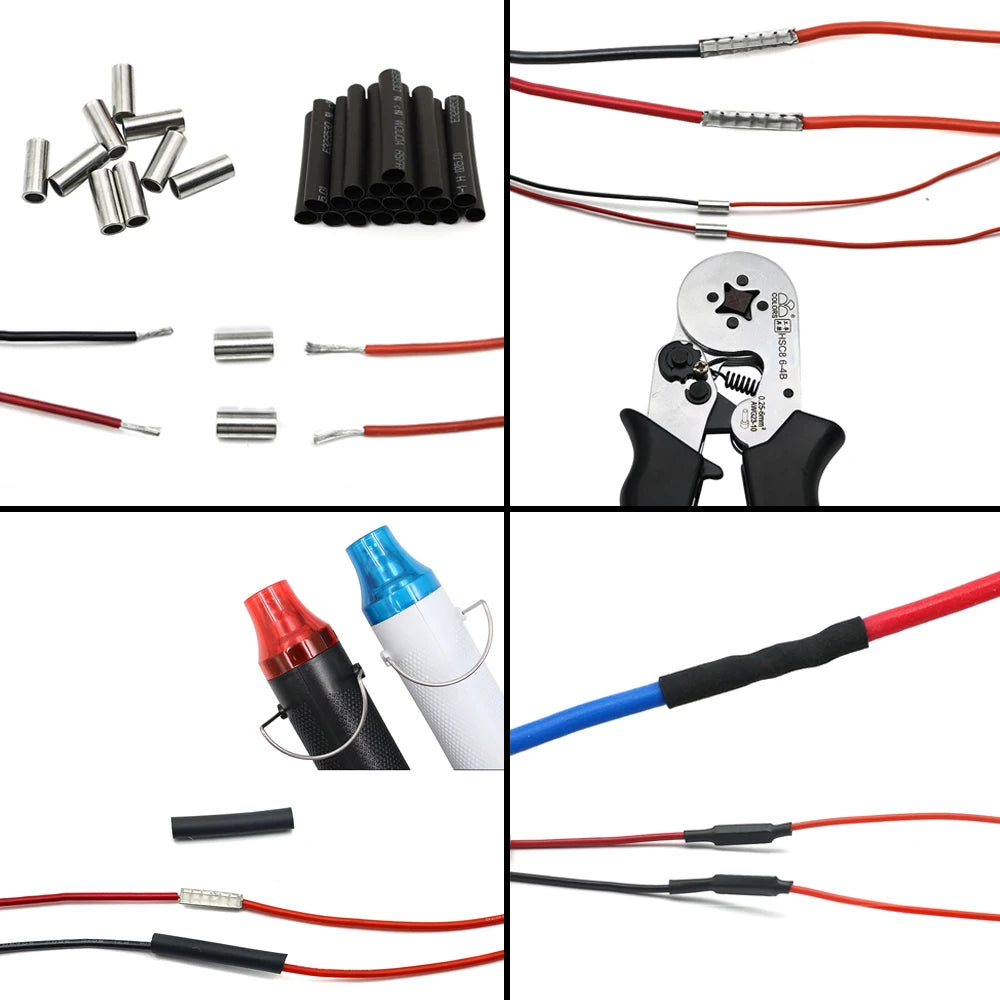

Buy 10m = 10m cable + 2 pcs copper tube + 2 pcs sleeves
Buy 15m = 15m cable + 4 pcs copper tube + 4 pcs sleeves
Buy 20m = 20m cable + 4 pcs copper tube + 4 pcs sleeves
Buy 30m = 30m cable + 6 pcs copper tube + 6 pcs sleeves
Buy 40m = 40m cable + 8 pcs copper tube + 8 pcs sleeves
Buy 50m = 50m cable + 10 pcs copper tube + 10 pcs sleeves
Buy 60m = 60m cable + 12 pcs copper tube + 12 pcs sleeves
Buy 70m = 70m cable + 14 pcs copper tube + 14 pcs sleeves
Buy 80m = 80m cable + 16 pcs copper tube + 16 pcs sleeves
Buy 90m = 90m cable + 18 pcs copper tube + 18 pcs sleeves
Buy 100m = 100m cable + 20 pcs copper tube + 20 pcs sleeves
