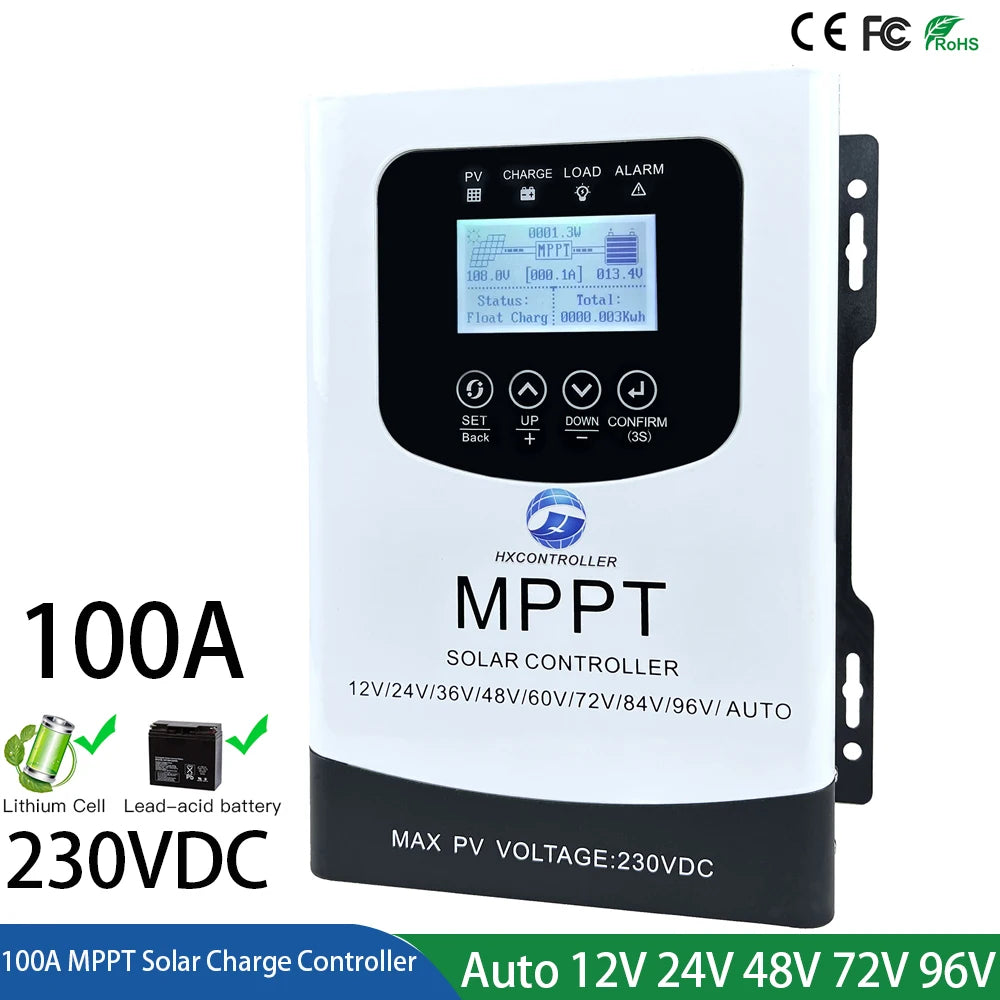

MPPT 100A 80A 230VDC Solar Charge Controller With LCD Touch DISPLAY Ship From EU US For 24V 48V 60V 72V 96V Home Solar System
MPPT 100A 80A 230VDC Solar Charge Controller With LCD Touch DISPLAY Ship From EU US For 24V 48V 60V 72V 96V Home Solar System
Couldn't load pickup availability
Description
Description
SKU:200007763:201336100;560:3979#12V From 96V Auto;822:200661922
SPECIFICATIONS
Brand Name: HXCONTROLLER
Origin: Mainland China
Model Number: MPPT 100A 80A 230VDC Solar Charge Controller
Maximum Current: 100A
is_customized: Yes
Certification: CE
Certification: FCC
Is Smart Device: YES
Application: Voltage Controller
Application: Solar System Controller
Battery type: Lead Acid,Gel,LifePo4 and other lithium battery
Battery Voltage: 12-96V
MAX PV Input: 230V
Whether Support RS485 Device: YES
Warranty: 1 Year
Brazil customer Ship From Brazil Warehouse: 5-10days delivery
Basic functions:

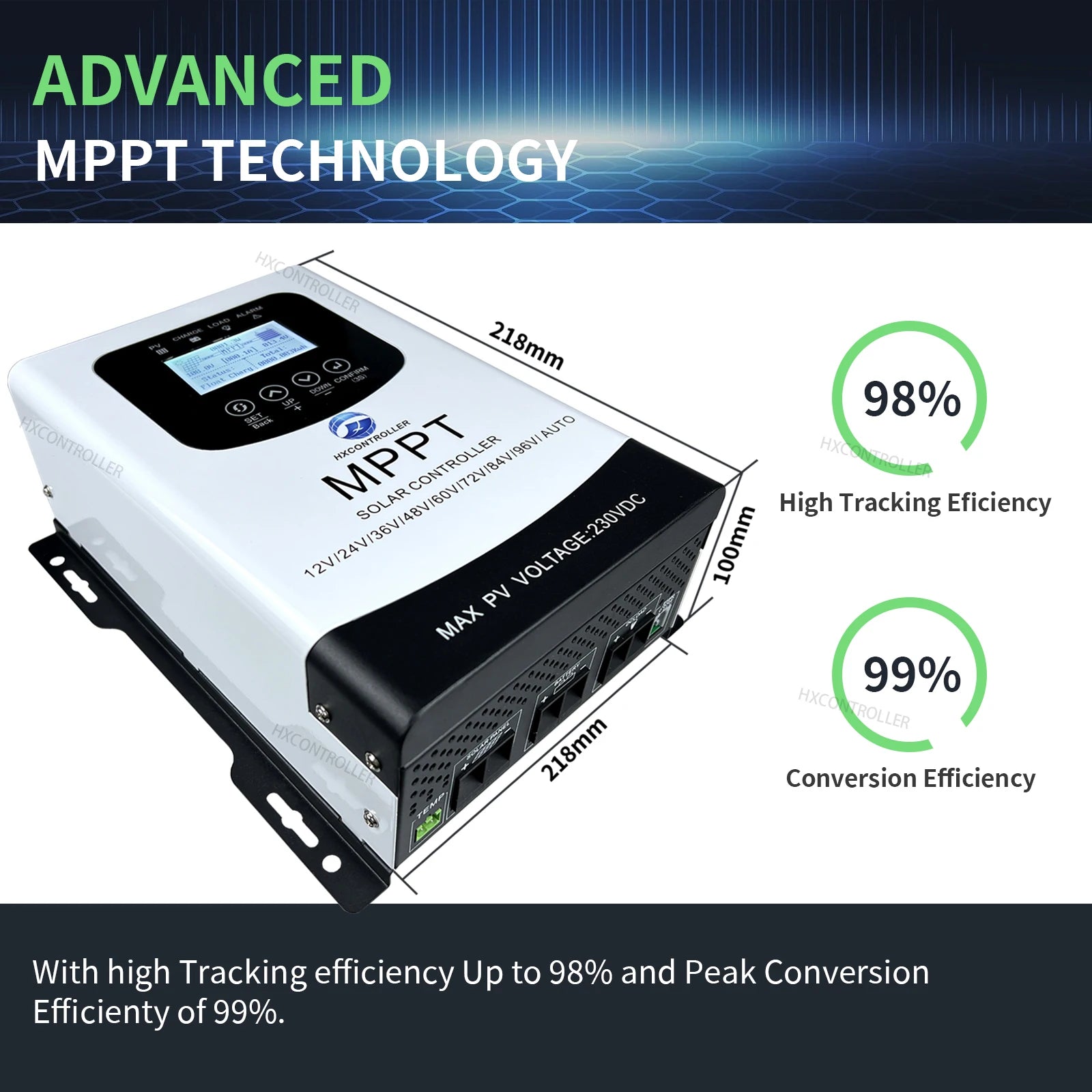

Innovative maximum power point tracking technology, which can significantly improve the energy utilization rate of the solar system, and the conversion efficiency is as high as 97%;
Quickly scan the entire I-V curve, and efficiently track the maximum power point;

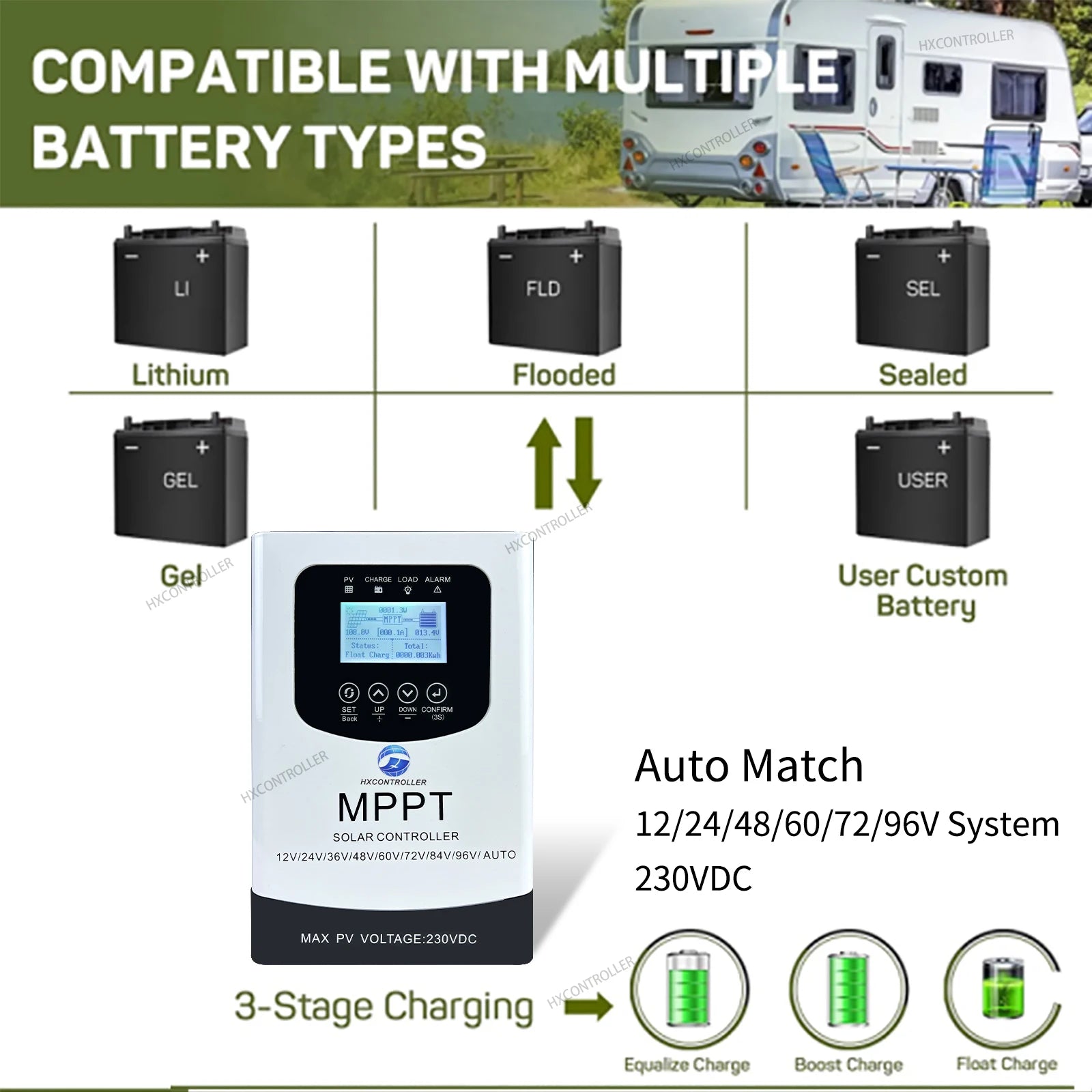

Three types of lead-acid batteries, sealed, colloidal, and open type, and lithium battery series charging programs are optional;

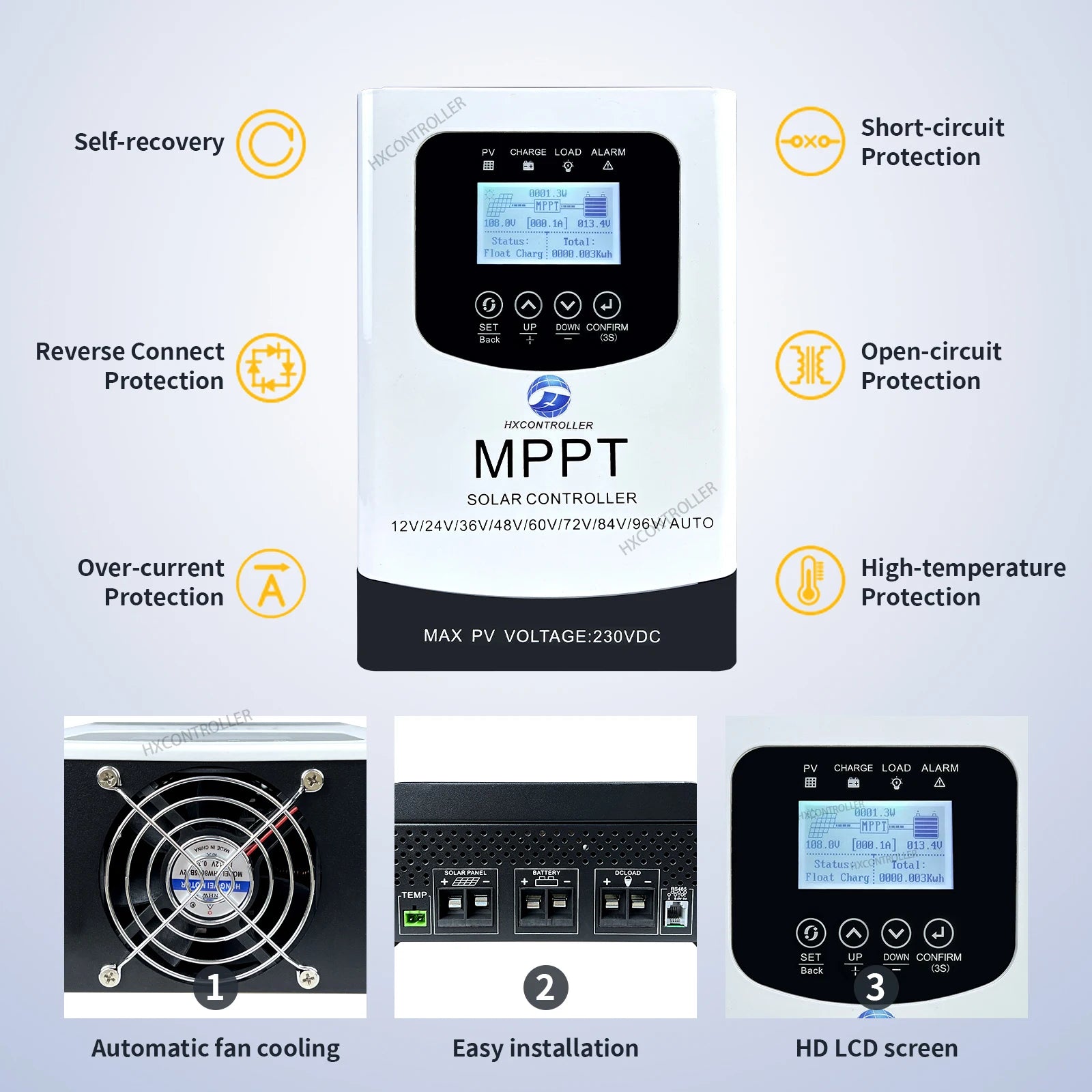

With automatic protection functions for overcharge, overdischarge, overload and short circuit;
RS485 communication interface, multi-machine communication is possible, and it is convenient to view the operating parameters of the controller;
MPPT control features
This controller is used in solar off-grid power generation system to automatically adjust battery charging and discharging. It has an advanced tracking algorithm to obtain the maximum power of the solar cell components and charge the battery; at the same time, its low voltage disconnect (LVD) function can prevent the battery from over-discharging and causing damage.
The battery charging process of the MPPT controller is optimized to extend battery life and improve system performance. Its comprehensive self-test function and electronic protection function can avoid damage caused by installation errors and system failures. Although the controller is easy to operate and use, in order to allow you to better use all the functions of the controller and improve your photovoltaic system, please read the instructions and instructions in this manual carefully.
Controller Parameter Table
Modelo MPPT |
30A |
40A |
50A |
80A |
100A |
120A |
|
Corriente de carga nominal |
30A |
40A |
50A |
80A |
100A |
120A |
|
Potencia máxima de entrada PV |
Sistema 12V |
36ow |
480W |
600W |
960W |
1200W |
1440W |
Sistema 24V |
720W |
960W |
1200W |
1920W |
2400W |
2880W |
|
Sistema 36V |
1080W |
1440W |
1800W |
2880W |
3600W |
4320W |
|
Sistema 48V |
1440W |
1920W |
2400W |
3840W |
4800W |
5760W |
|
Sistema 6ov |
1800W |
2400W |
3000W |
4800W |
6000W |
7200W |
|
Sistema 72v |
2160W |
2880W |
3600W |
5760W |
7200W |
8640W |
|
Sistema 84V |
2520W |
3360W |
4200W |
6720W |
8400W |
10080W |
|
Sistema 96v |
2880W |
3840W |
4800W |
7680W |
9600W |
11520W |
|
Modo de carga |
Seguimiento automático de potencia máxima MPPT |
||||||
Modo carga |
MPPT rastrea la potencia máxima, carga rápida, |
||||||
Tipo batería |
Batería de plomo ácido |
(12V / 24V/36V/48V/96v identificación automática) |
|||||
Batería gel |
12V/2av/ 36V/48V/6ov / 72v / 84V/96v ajustable |
||||||
Hierro litio |
Voltaje unitario 3,2 * NÚMERO DE CUERDAS (2-45 ajustable) |
||||||
Litio ternario |
Voltaje unitario 3,7 * Número de CUERDAS (2-45 ajustable) |
||||||
Definido por el usuario |
Carga ecualizadora, carga flotante, |
||||||
Con función de activación de litio |
Con entrada fotovoltaica, hay voltaje de carga (activar la batería de litio), |
||||||
Arranque fotovoltaico de voltaje mínimo |
El voltaje fotovoltaico es mayor que |
||||||
Voltaje de entrada de circuito abierto máximo PV |
0-230V |
0-230V |
|||||
Corriente de carga fotovoltaica ajustable |
0-30A |
0-40A |
0-50A |
0-100A |
0-100A |
0-120A (máx. 430VDC) |
|
Salida de corriente CC (función de farola) |
Salida continua CC 25A |
Salida continua 60A |
Salida continua CC 100A |
||||
Compensación temperatura |
Compensar automáticamente el voltaje y la corriente de carga |
||||||
Botón táctil LCD |

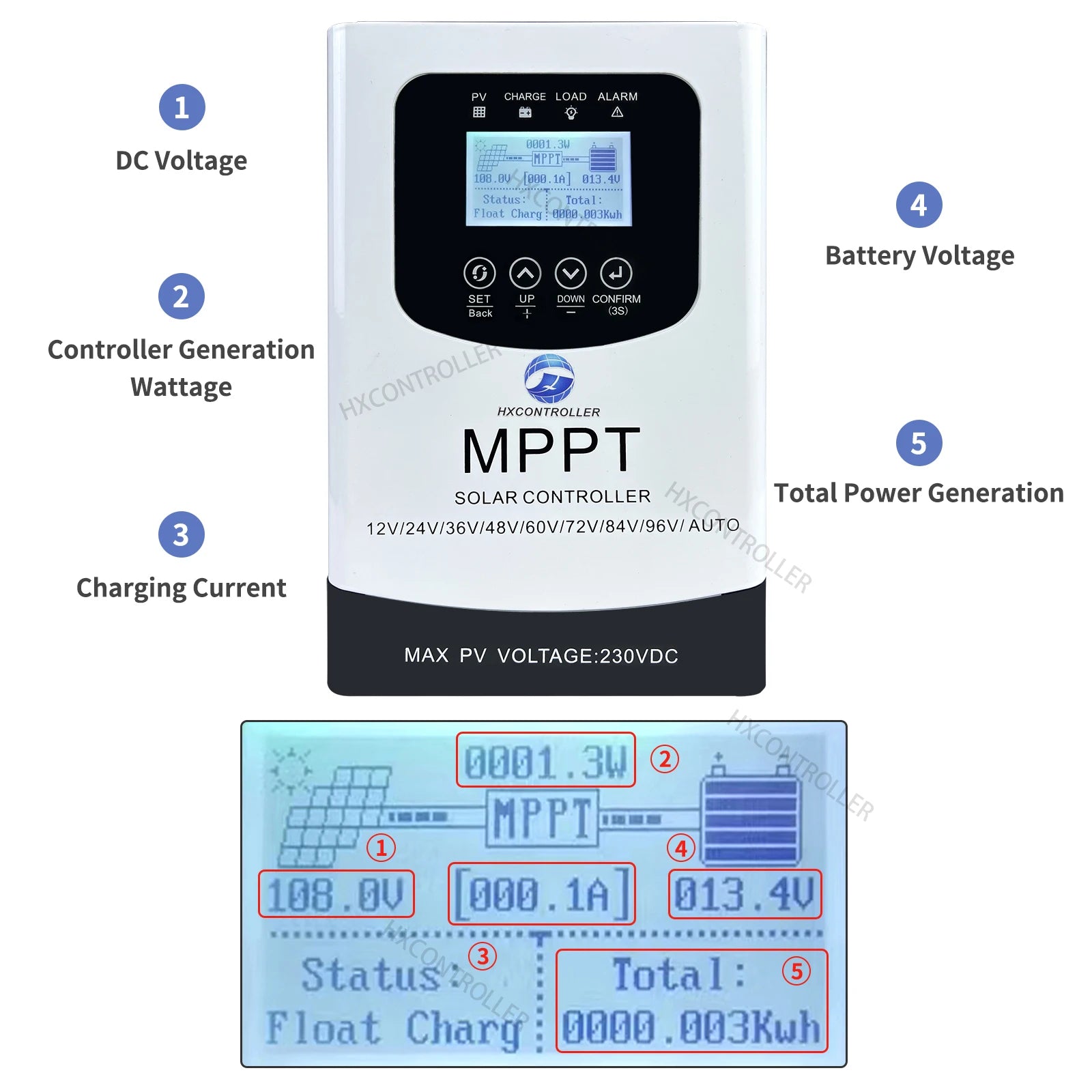

Pantalla LCD: (capacidad de generación/voltaje fotovoltaico/voltaje de la batería/carga |
||||||
Configuración: (tipo de batería, corriente de carga, retorno a la fábrica), | |||||||
Comunicación 485 |
Interfaz de comunicación RS485 de 8 pines (Estado de operación y |
||||||
Temperatura ambiente de trabajo |
～-10℃一+45℃ |
||||||
Consumo de energía estática |
2W |
||||||
Eficiencia general |
96.5%~99% |
||||||
Protección térmica |
85℃ |
||||||
Protección contra aumento de temperatura |
Reduce la potencia de salida por encima de 8o ℃ |
||||||
Función de protección |
Cortocircuito de matriz fotovoltaica, sobretensión, conexión inversa de sobrecorriente |
||||||
Humedad |
O ~ 90% RH (sin condensación) |
||||||
Nivel de protección mecánica |
P21 |
||||||
Altitud |
0 ~ 3000m |
||||||
Tamaño |
202mm * 215mm * 100mm |
218mm * 265mm * 100mm |
|||||
Peso neto/bruto |
1,95 KG |
2,6 KG |
|||||
Tamaño del paquete |
265mm * 224mm * 120mm |
315mm * 240mm * 120mm |
|||||

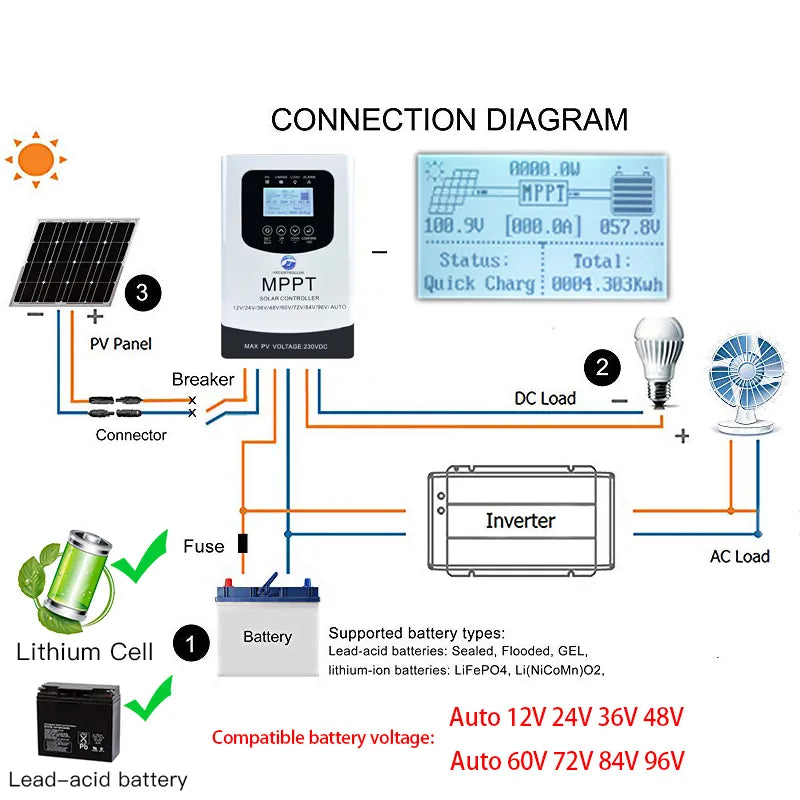

Line connection method:
The correct wiring sequence of the solar controller is as follows:
1. First connect the positive and negative electrodes of the battery;
2. Connect the positive and negative poles of the DC load;
3. Finally, connect the positive and negative poles of the solar panel.
Installation safety distance:
Observe the following safety clearances and ensure that other equipment or objects are not within this range to ensure that there is enough space for heat dissipation.
