The SVBONY SV105 Astronomy Planetary Camera is a great tool for astronomy enthusiasts who want to capture stunning planetary images. It features a 1.25'' CMOS sensor and can be easily connected to your computer via USB 2.0. This digital eyepiece is a great option for beginners who want to try their hand at planetary photography. So, if you're looking to take your stargazing experience to the next level, give the SVBONY SV105 Astronomy Planetary Camera a try.

SPECIFICATIONS

• Brand Name: SVBONY
• Operating System: Windows
• Working Humidity: 30%~80%
• Type: Monocular
• USB: USB2.0
• Sensor Type: Color Sensor
• Exposure Time: 30s
• Storage Humidity: 20%~90%
• Pixels: 2.9μm
• Storage Temperature: -10℃~60℃
• Working Temperature: -0℃~45℃
• Gain value: 0-500
• Camera Interface Type: M42 interface
• Shutter Type: Rolling Shutter
• Camera Resolution: Maximum resolution 1920*1080
• Support Telescope: Telescope with 1.25 inch aperture
• Model Number: SV105
• ADC bits: 10 bits
• Brand: SVBONY
• Sensor: 1/2.8" SONY IMX307
• Model: SV105
• Pixel size: 2.9μm
• Max FPS: 30fps (MJPG 1920*1080)
• Resolution: 2 Mega Pixels 1920X1080
• Video encoding format: MJPG/ YUY2
• Weight: 100g
• Material: aluminium alloy
• Power consumption: 150mA@5V
• Supported OS: Windows 7, 8.1,10. Linux, Mac OS, Android
• Working relative humidity: 30%~80%
• Storage relative humidity: 20%~90%
• ADC: 10bit/12bit
• Digital Telescope Eyepiece: Yes
• Digital eyepiece for telescope: Yes
• Electronic Eyepieces: Yes
• USB Eyepiece: Yes
• connect device: Android smartphone, PC
• suitable: for astronomy beginners

SV105 CMOS Color Astronomy Camer

USB 2.0 & Plug and Play
Dark Light Compensation
2K Resolution
1.25” Adapter Barrel
IR-650 Cut
Works with Telescope/ Spotting scope/ Microscope

The CMOS colour camera with plate number SV105 is a great option for beginners who want to capture clear images of the solar system. It is affordable and supports real-time dynamic observation, providing high-quality images.

For the best results, it is recommended to use a refractor telescope with a focal length between 400mm to 800mm. This will allow you to see a clear image without the need for any additional accessories.

Please note that using shorter focal-length telescopes or low-quality telescopes is not recommended when using the SV105 camera.

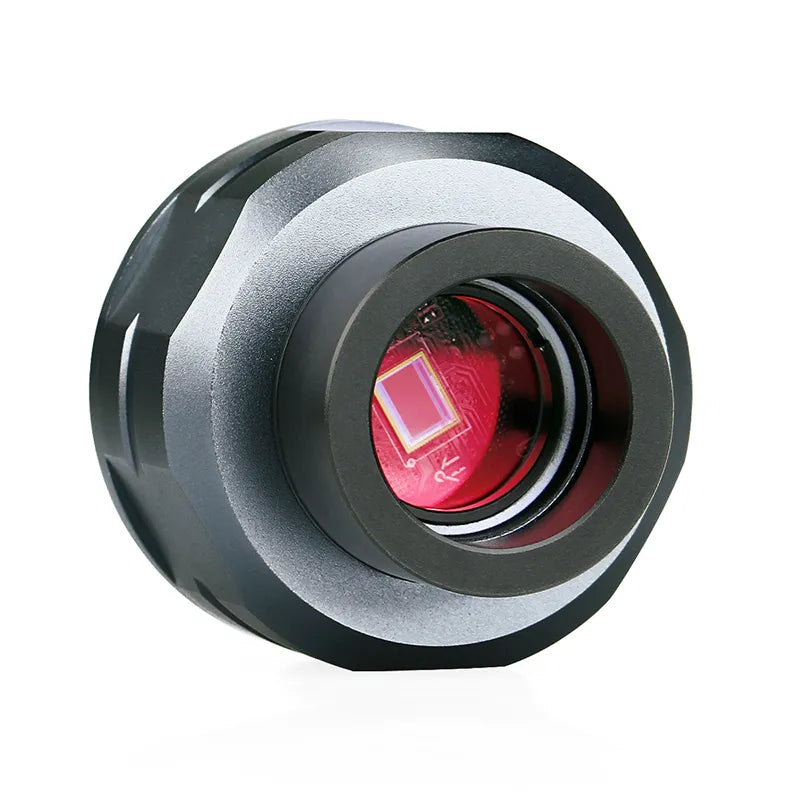

1/2.8" CMOS SONY IMX307 Sensor

USB2.0 & Plug and Play

Please find the corrected text below:

The astronomy camera with plate number SV105 does not have an automatic focus feature. Therefore, to see a clear image, you need to adjust your telescope's focus manually. The camera has plug-and-play functionality, making it easy to use. With 2 USB connectors, it ensures smooth observation of the night sky. If the power supply is not stable, you can connect the sub-USB connector to your computer or power bank. Doing so will provide double the electric current to ensure that the camera with plate number SV105 works well with enough electric power.

Software Download

Download Sharpcap Capture for Windows system;
Download AstroDMx Capture for Linux system;
Download USB Camera for Android system;

Dark Light Compensation

The image processor uses dark light compensation technology to greatly improve the telescope camera's image clarity in low-light conditions.

2K Resolution

By processing the image, the record 2K video at high speed, up to 30 frames per second at 1920*1080 resolution, with a maximum frame rate of up to 200 frames per second (320*240).

1.25" Adapter Barrel

The 1.25" Adapter Barrel is available for standard 1.25” filters and other 1.25” accessories. SV105 camera just replaces the eyepiece, for electronically enhanced viewing, or astrophotography. It would NOT work with most finder scopes that do not have a removeable eyepiece, or one that has an eyepiece smaller than 1.25".

IR-650 Cut

The IR650 filter, high transmittance of visible light, infrared transmittance low. The human eye cannot detect the infrared part of filter, and can adjust the scenery within react to the color of the image rendering color to achieve the best visual effect, greatly improve the image quality.

High Quality

Working Temperature: -0°C~45°C (0°F ~ 122°F)
Storage Temperature: -10°C~60°C (-4°F ~ 140°F)
Working Relative Humidity: 30%~80%
Storage Relative Humidity: 20%~90%

Used as a Guiding Camera

*The camera can not expose for a long time, and is not really sensitive, so it is better to guide brighter objects.

Used as Planetary Camera

*Suited for planetary, lunar and solar photography.

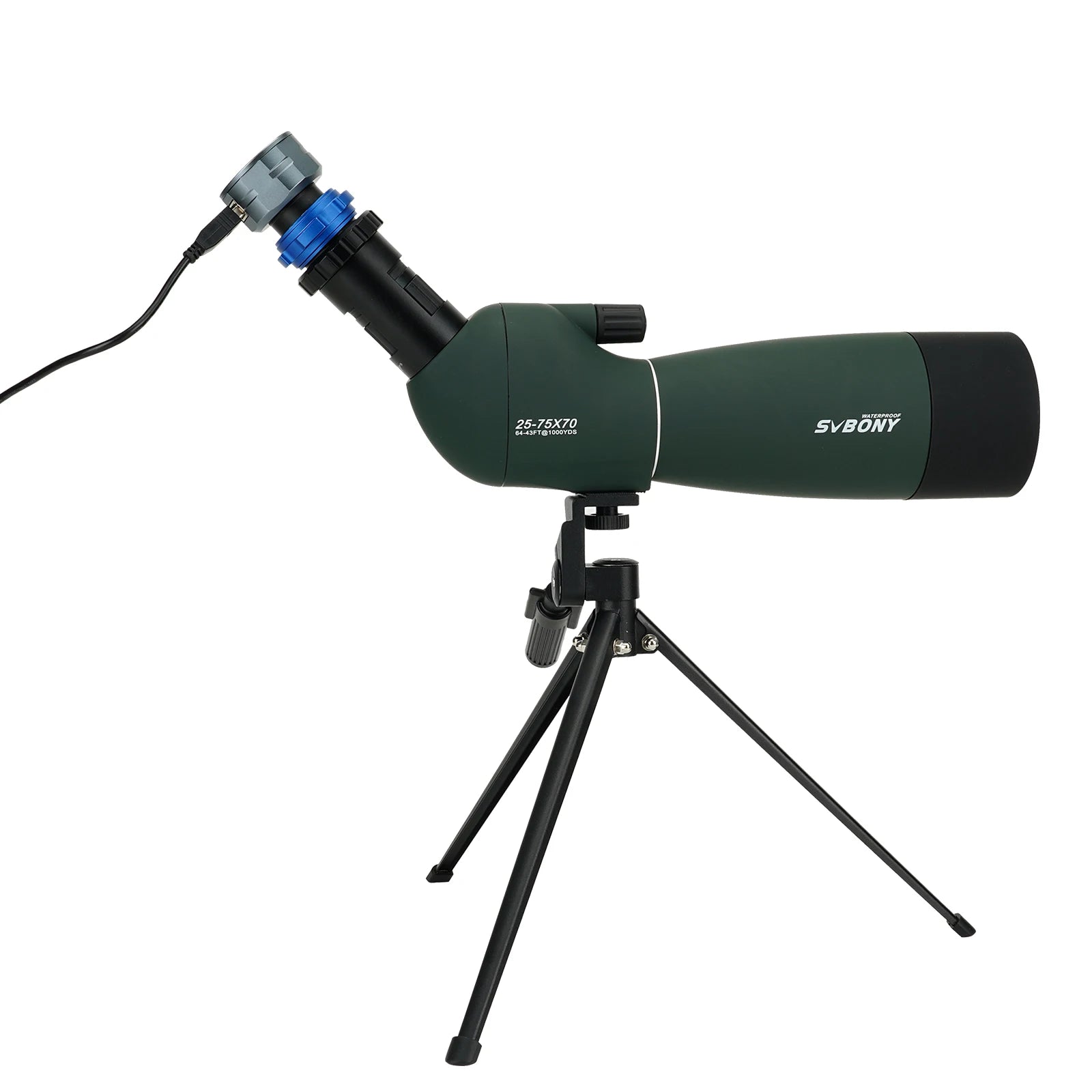

Connect the Spotting Scope (SV28) and Microscope.

Note:

Can the SV105 camera work with a smartphone?
First, you can download "USB Camera" from my smartphone [APP Store] and install it. This is a particularly good application because it presents the main control of the camera so that the correct exposure, etc., is set. It works with UVC webcams. Check the icon with the USB camera.
The SV105 camera was placed at the telescope focus of a refractor and was connected to the smartphone. Also need a USB2.0 to type C connector. Then, the SV105 camera could connect to a smartphone now.
A drop-down menu allows the selection of the camera controls, which can be hidden. People could set all the settings they want. The USB Camera can capture MP4 movies/videos or still images.

How to Use SV105 Astronomy Camera?
Adjust the telescope focus wheel well
▶Firstly, download the astronomy software 【sharpcarp】 from sharpcap site. then install it by following the prompts.
▶Secondly, Test the SV105 that connects it to the computer by the USB cable coming within the package. There is no need to install a driver. Because the SV105 is a standard UVC device, Windows 7 and newer operating systems will automatically install the driver.

Buyers Show

The moon, Saturn, and Jupiter were captured with SVBONY SV105 and COSMOS telescope by Rodolfo Langhi at 10 PM on October 22, 2020
Author: Rodolfo Langhi

SV105 planetary camera
Telescope Skymax 127
2x Barlow
focal length 3000mm
Skywatcher Eqm35 pro
Captured with Sharpcap
Processing: Registax 6 and Photoshop
Author: Ioan Nemes

Moon using a SV105 on direct Focus of a Meade 203/SC Schimidt-Cassegrain
Author:Furlani Gma
