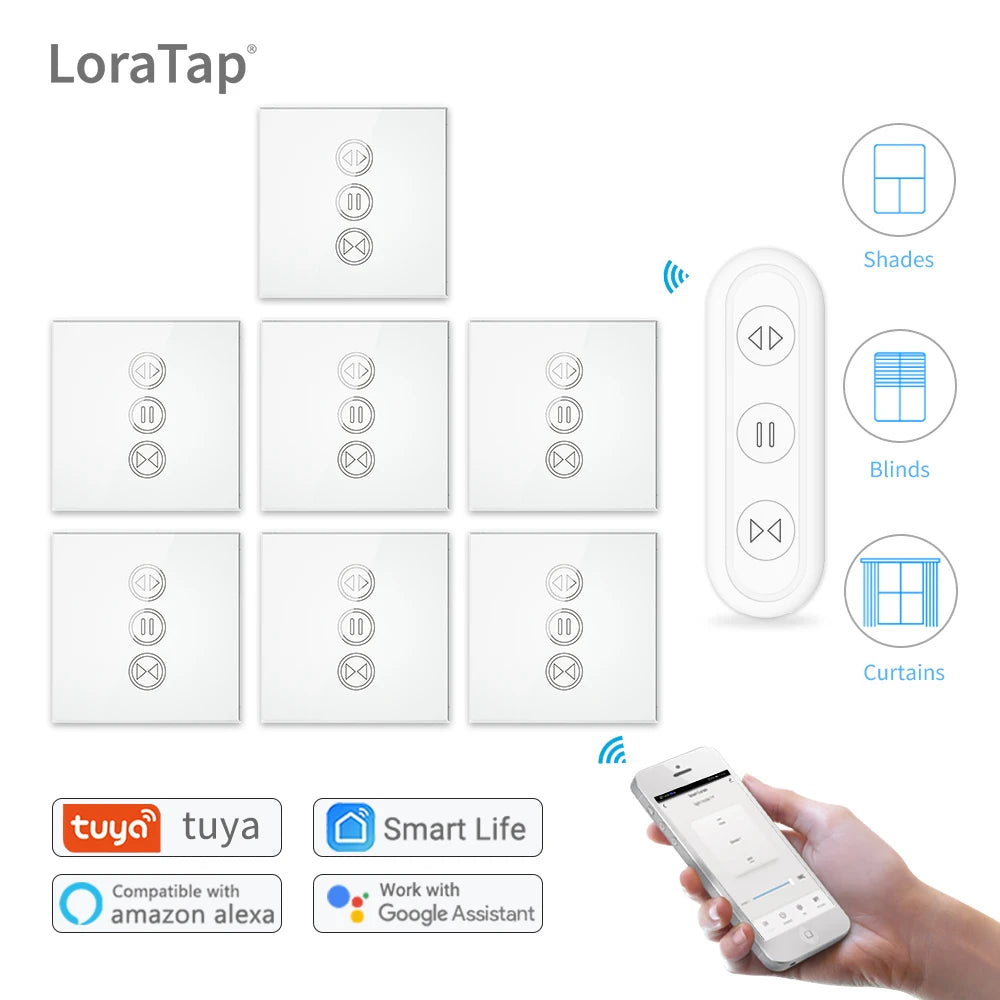

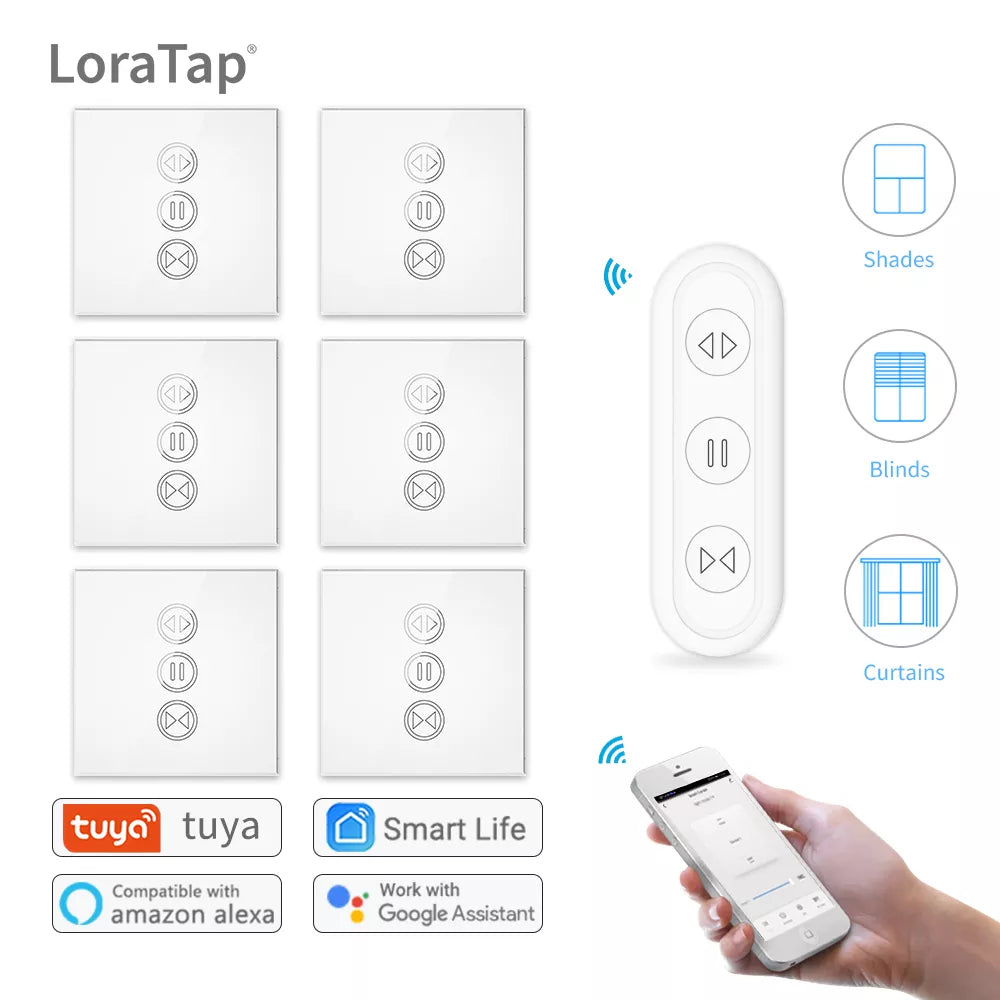

Tuya Smart Life Curtain Switch Rolling Blinds Engine Roller Shutter RF & WiFi Connected Google Home Alexa Echo Motor LoraTap
Tuya Smart Life Curtain Switch Rolling Blinds Engine Roller Shutter RF & WiFi Connected Google Home Alexa Echo Motor LoraTap
Couldn't load pickup availability
Description
Description
SKU:14:100018786#2 Channels 2 Switchs;200007763:201336100
SPECIFICATIONS
- Brand Name: LoraTap
- Wattage: 600W
- Voltage: 110-240V
- Certification: CE, RoHS
- Model Number: SC414WSC-EU-V3-WHI
- warranty: 2 years
- Input/Output Voltage: 100-250VAC
- Certification: CE, RED, Rohs
- APP Name: Smart Life,Tuya
- Support System: Both Android and IOS
- Voice Control: Google Home, Amazon Alexa
- Remote Control Range: up to 30m
- Works with: Roller Shutter, Blinds, Project Screen Sunscreen
- Compatible with: any 4 wires engine motor

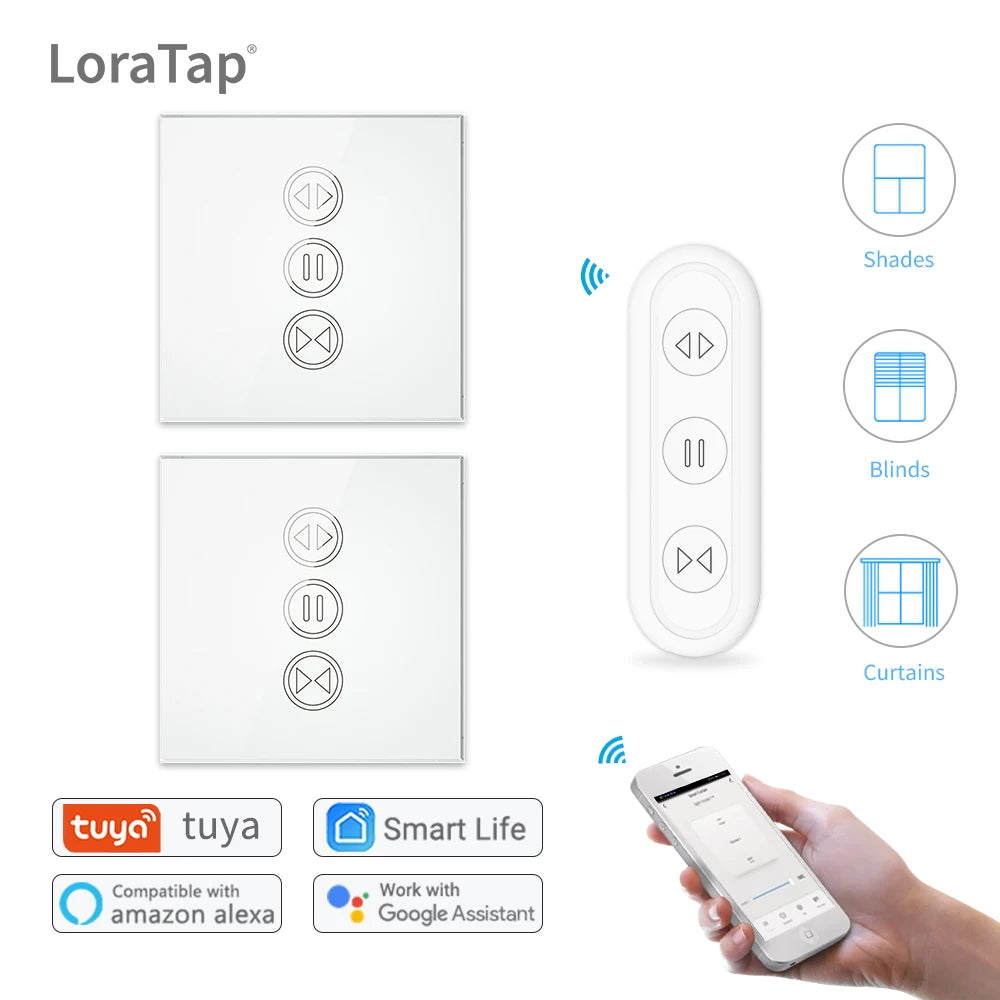

LoraTap 7th Generation RF & WiFi Percentage Curtain Switch

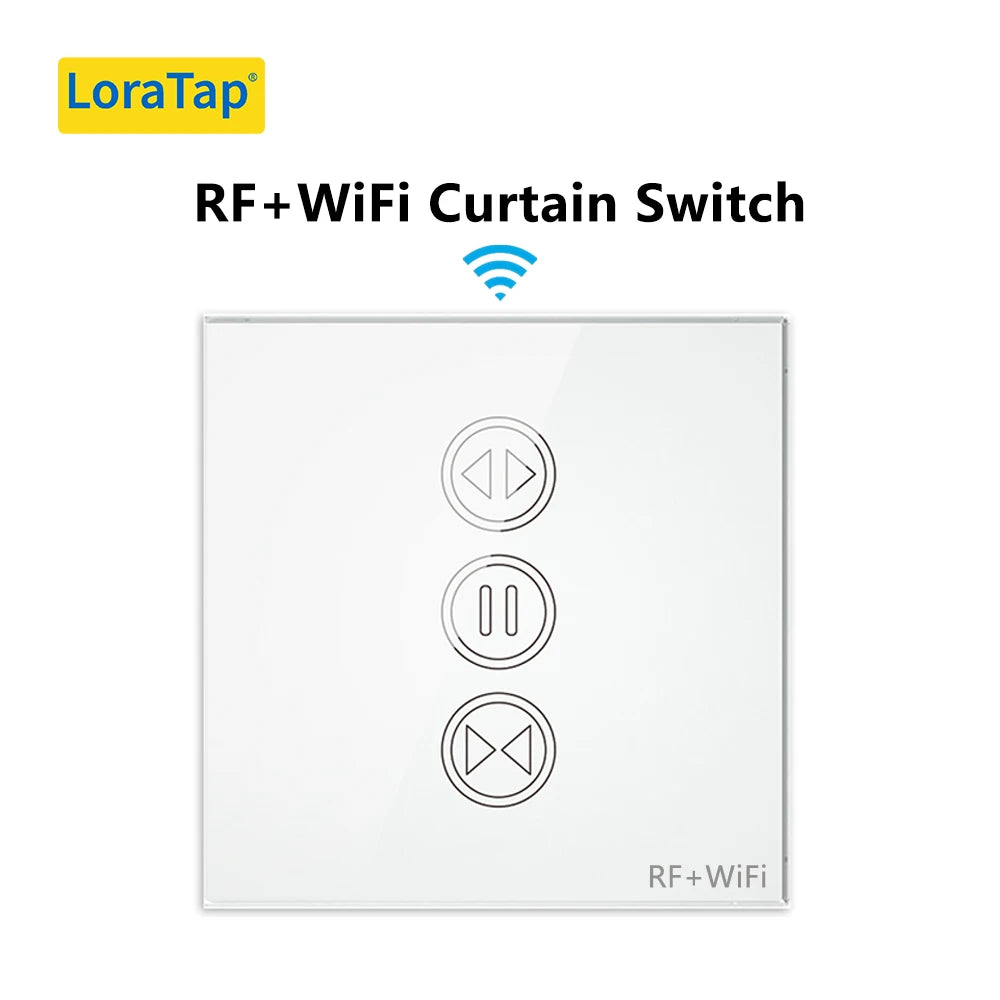

LoraTap RF+WiFi Backlight Function Curtain Switch
RF + WiFi Roller Shutter Switch Modules with 4 Channels RF Remote
Note before order:
The RF curtain remote can just work with the roller shutter switch in this listing, because the curtain switch in this listing is RF + WiFi version. Please don’t buy the curtain switches in other listing even they are cheaper, they are not compatible.
- Please check your motor is with 4 wires (Blue Wire, Brown wire, Black Wire, Green/Yellow Wire) before you buy our.
- Before using App to control the shutter, please keep the wall manual switch at 'STOP' position, otherwise , the App can't work, it's to protect the motor.

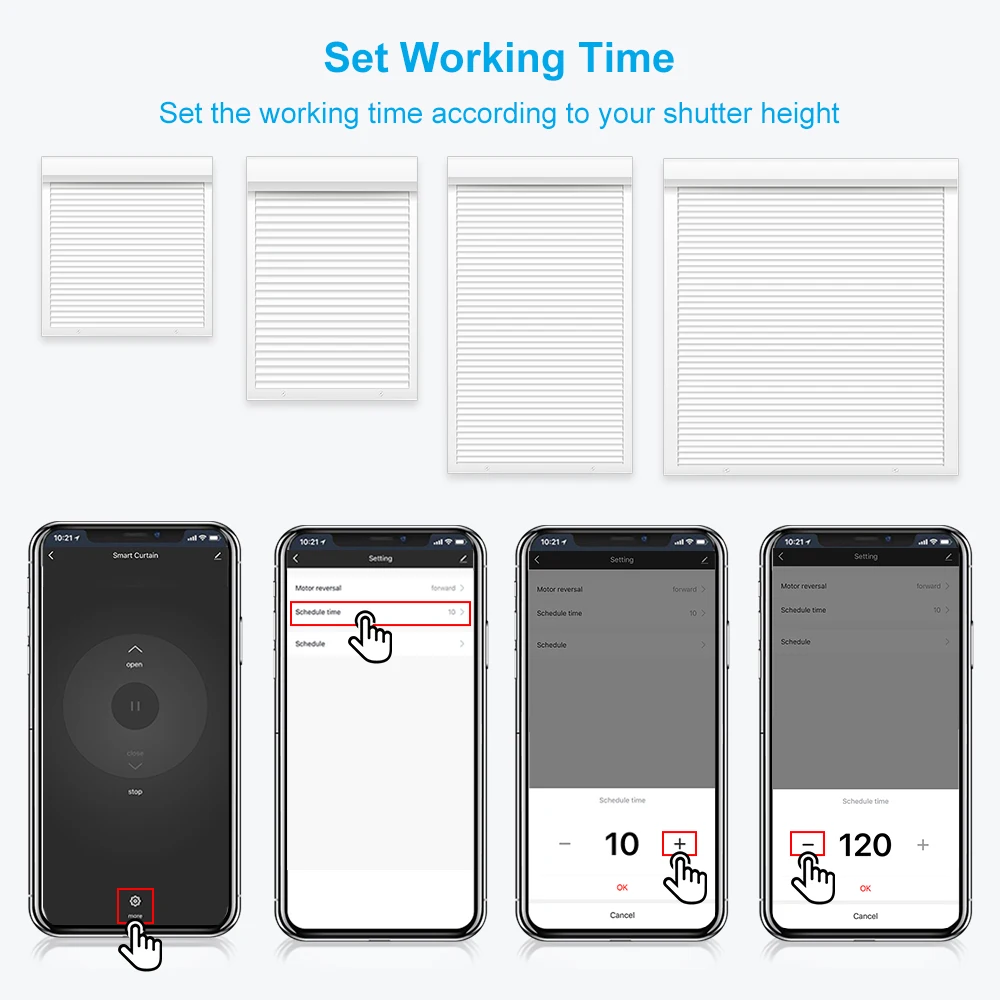

NEW Function - Set Motor Working Time
- You can set the switch operation time 10-120 seconds quickly in the app according to your need. Then you can open the blind at the percentage as you need.
- You can set the switch operation time range 10-120 seconds on App according to your shutter's height. So it's more safe for you motor engine.
4 Ways to Control Your Curtain Blind
- App Remote Control ( Open, Stop, Close)
- 3-Button Manual Remote Control (Open, Stop, Close)
- Voice Control with Google Home, Amazon Alexa, (Open, Close)
- Touch Panel Manual Control
Smart Life or Tuya App
- App Name: Smart Life or Tuya App, both is ok.
- Support Both IOS and Android
- Works with Google Home and Amazon Echo Alexa
Voice Control
- Hands-free Smart Blind Switch Compatible with Amazon Alexa, Google Home.
- With voice control to turn on and turn off the curtains.

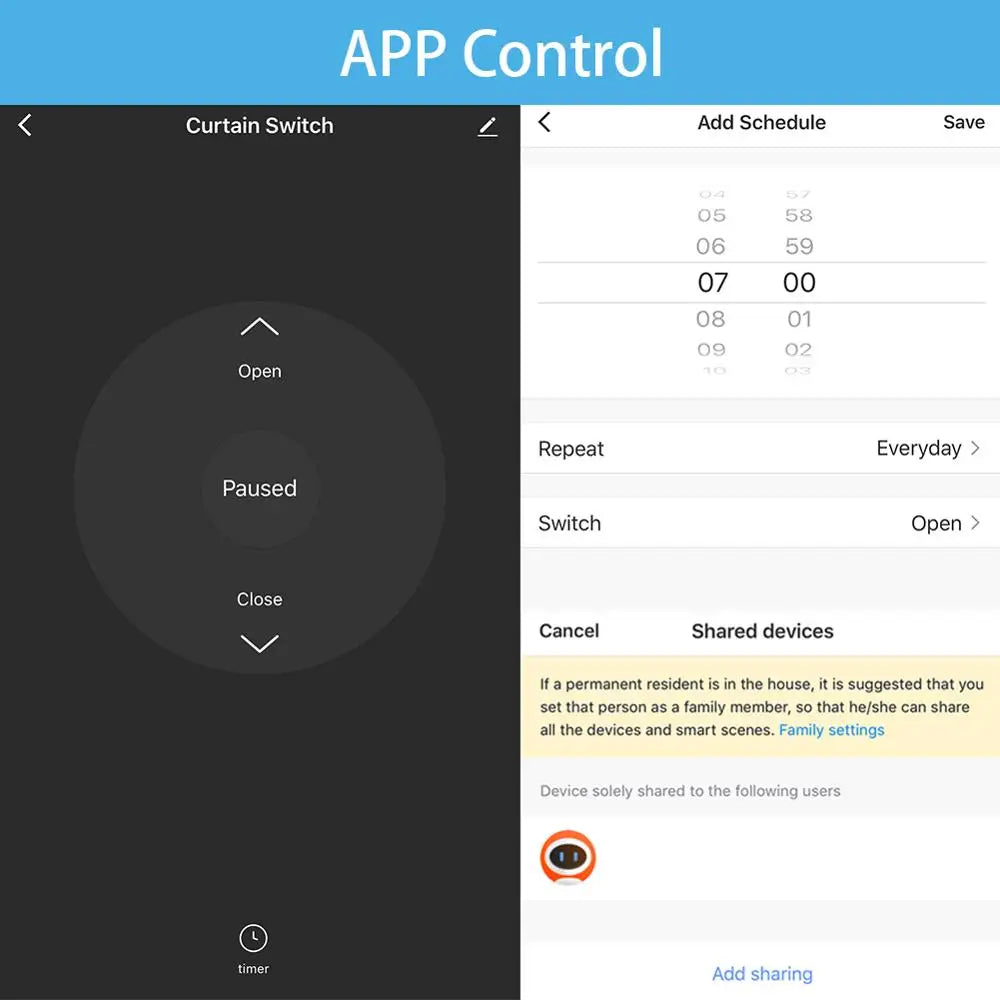

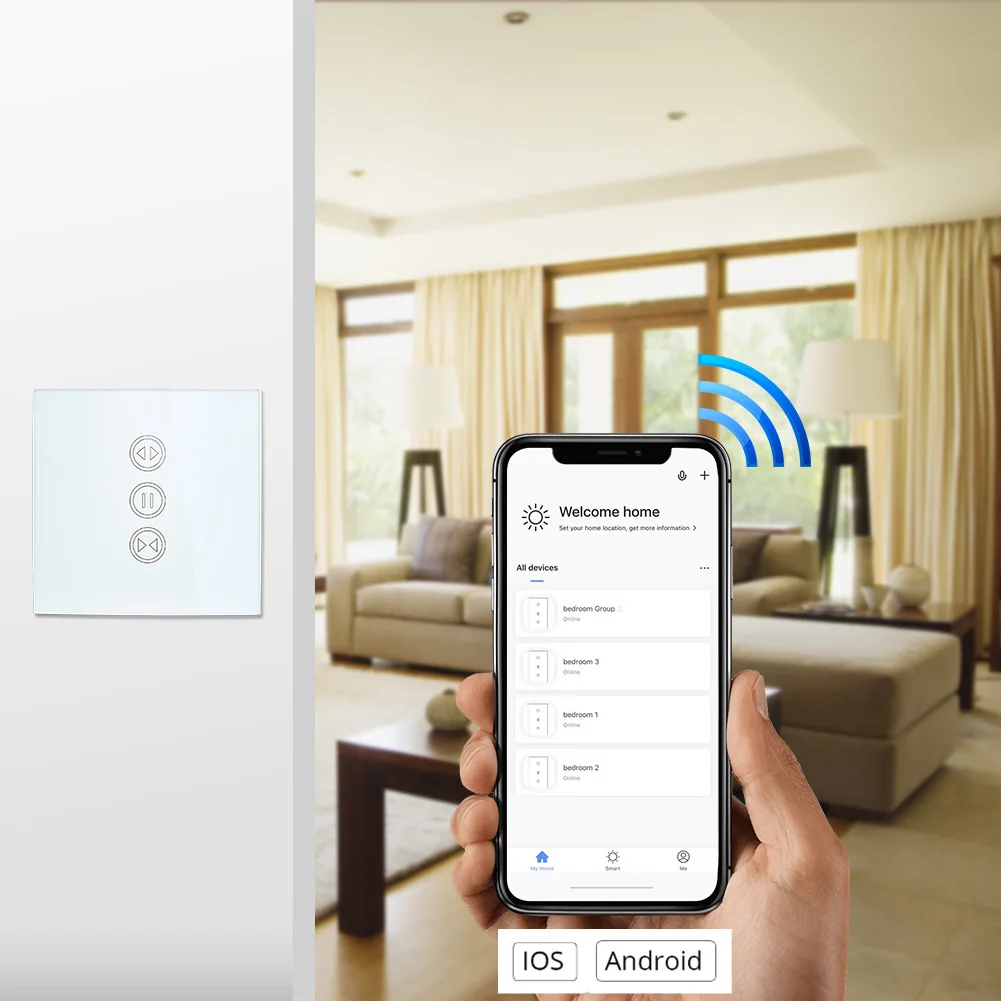

Mobile App Control
- Timing Function, APP remote control
- Program the switch on App 'smart life/Tuya', then your curtain, blind, roller shutter can be remote controlled by phone and you can set timing schedule for it, like open at 7:00am, close at 7:00pm, then your curtain blind can open or close automatically when time is up.
- You can control your smart curtains by mobile phone anytime, anywhere as long as it's with network, Control Your Curtain Anywhere with Your mobile 2G, 3G, 4G network

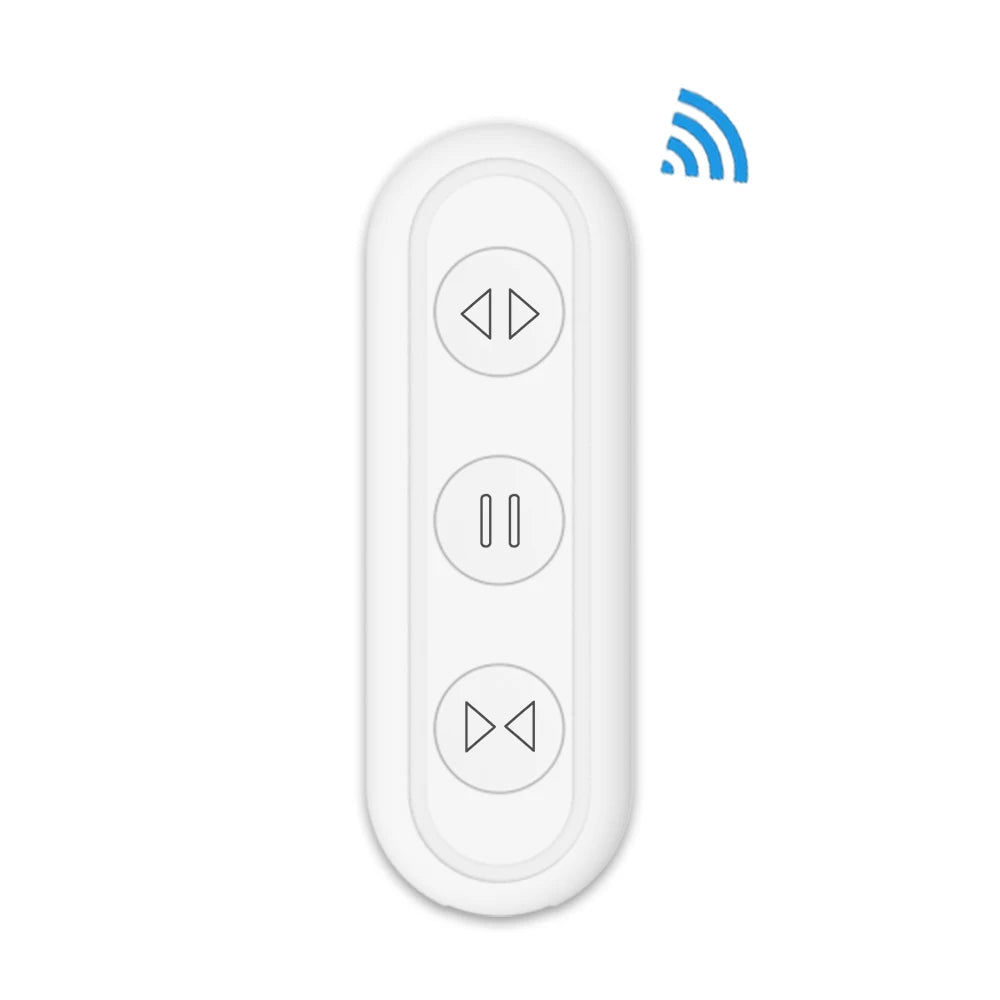

3-Button Remote Control
- You can control the curtain by 3-button remote when your wifi network is offline.
- The control distance of this RF remote is 30m, so you can remote control the curtain quickly anywhere in your house.

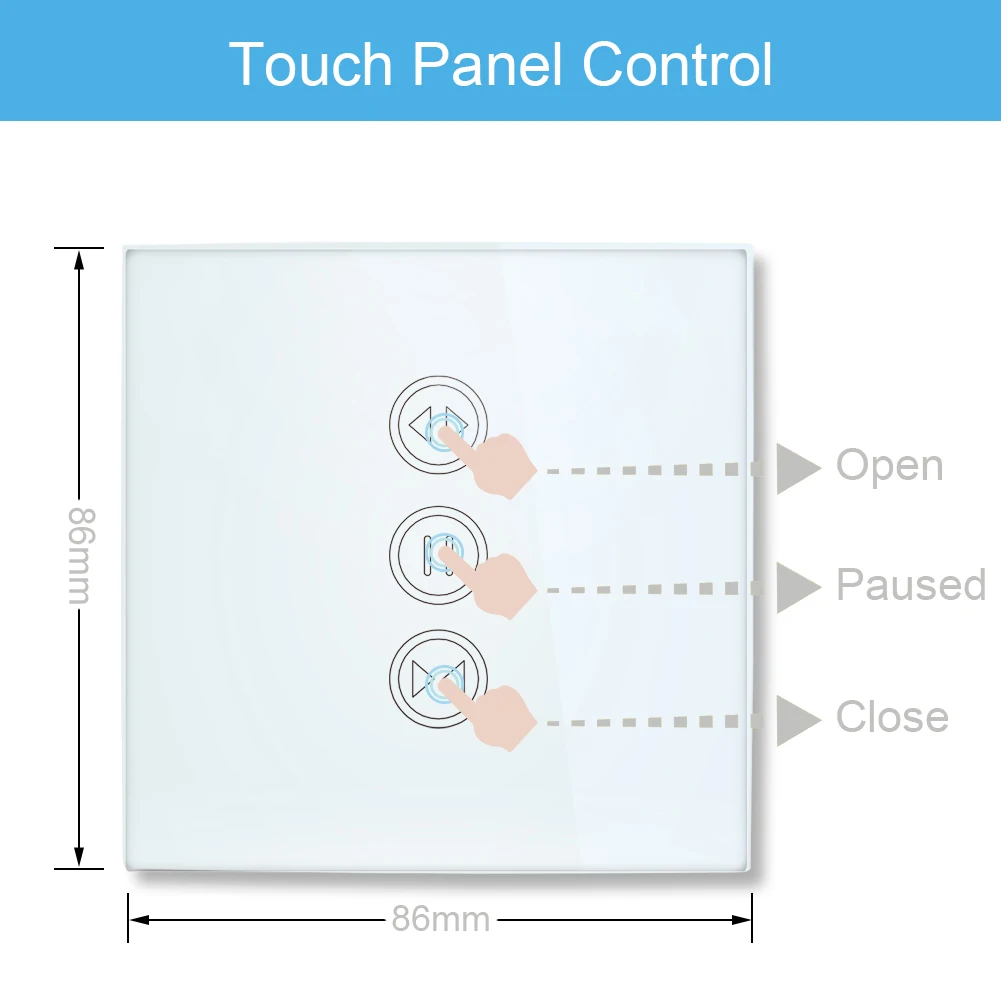

Touch Panel Control
You can control your curtain on the touch panel control if any emergency.
No light always ON, not bother sleeping
No Lights always be on unless you touch on panel, it's good for sleep.
Group Function and Device Sharing with App
You can create group in the APP to manage all the blinds in your house and share the device to all your family members.

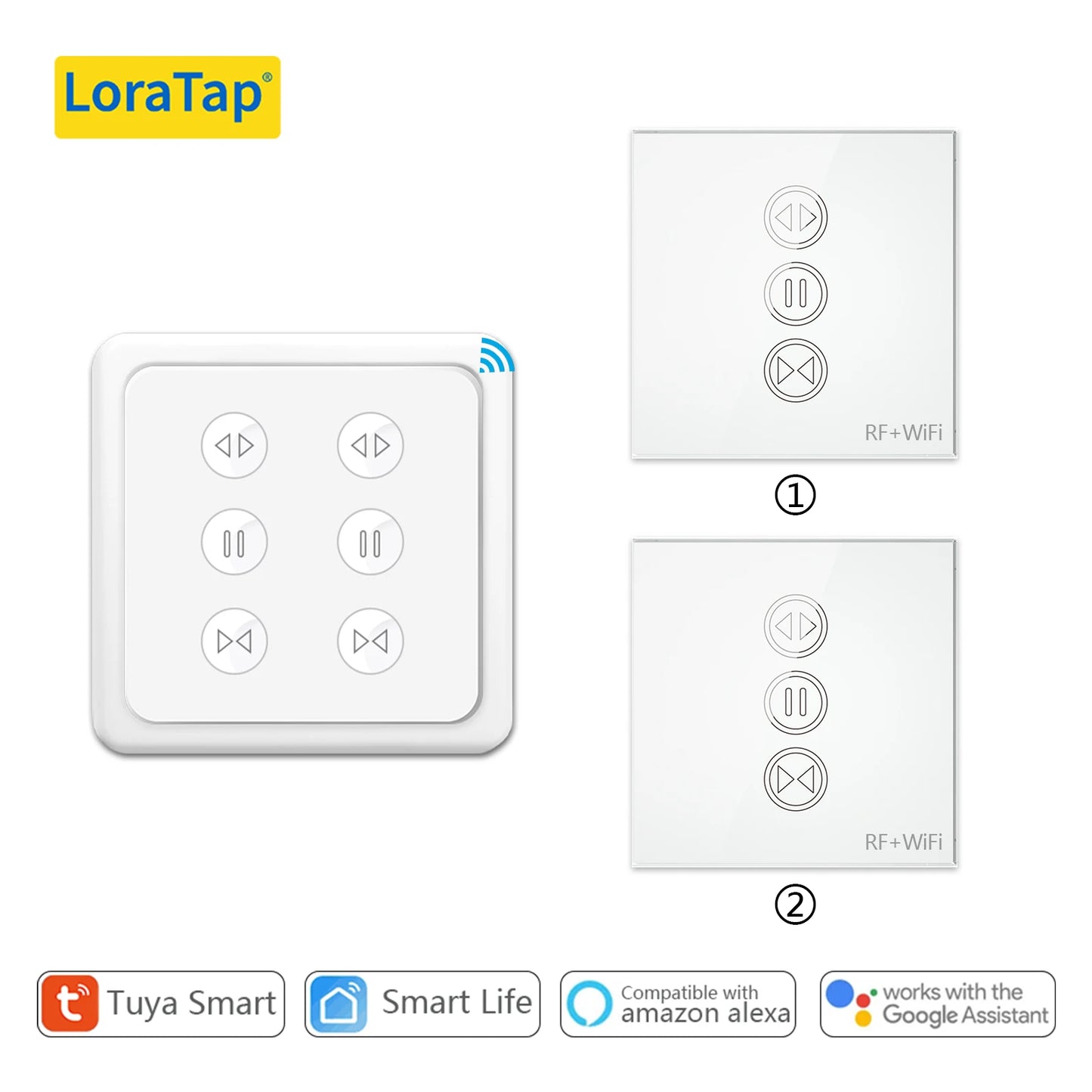

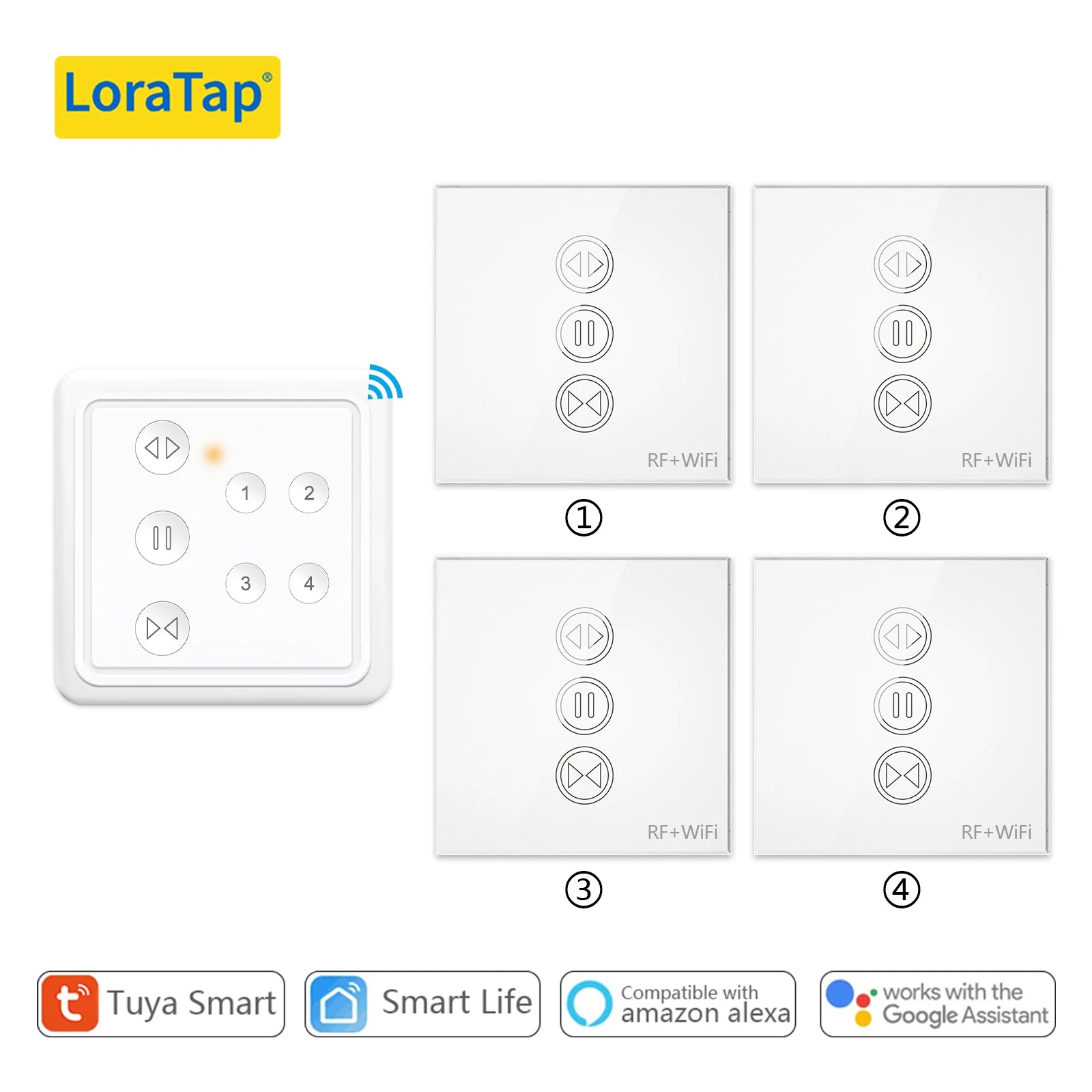

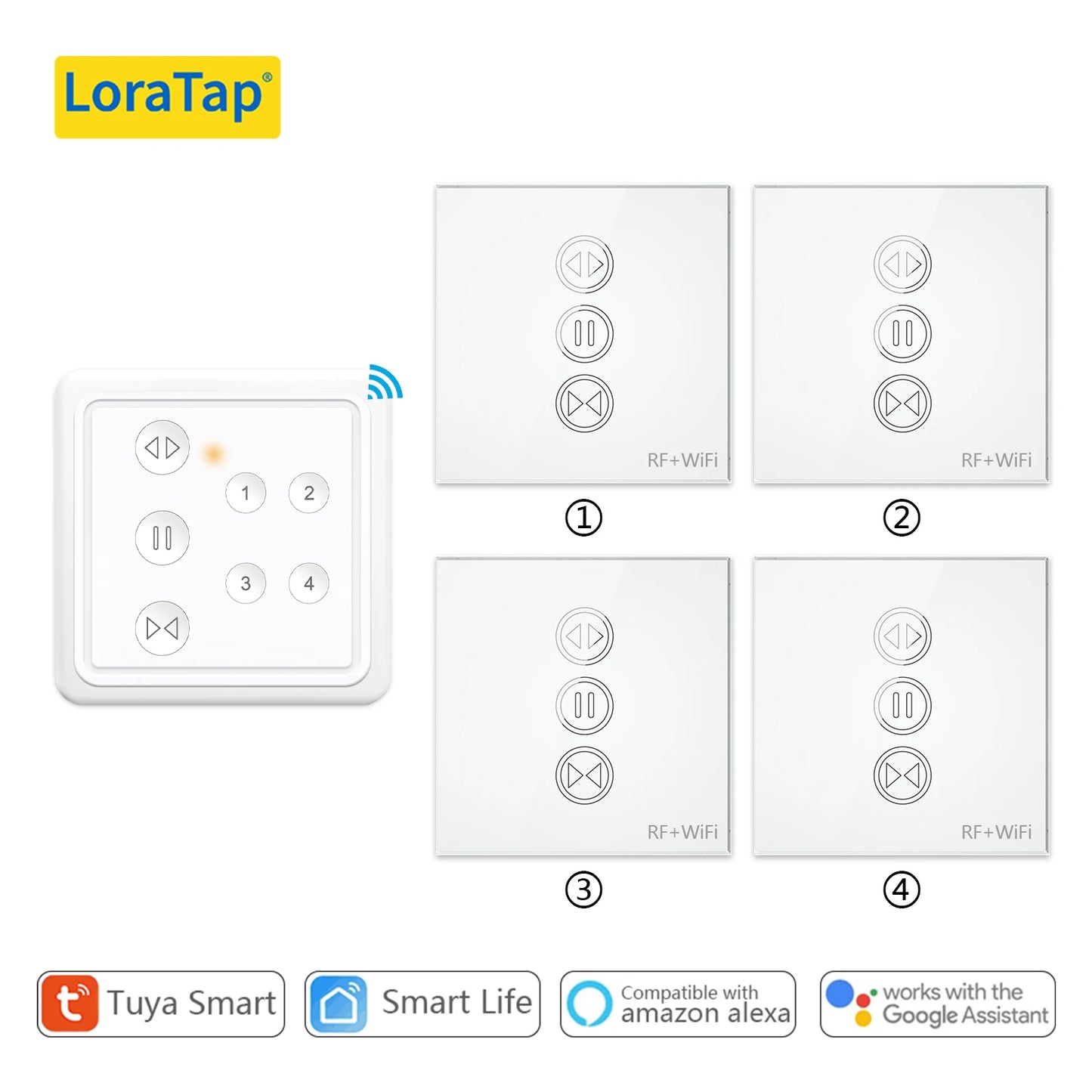

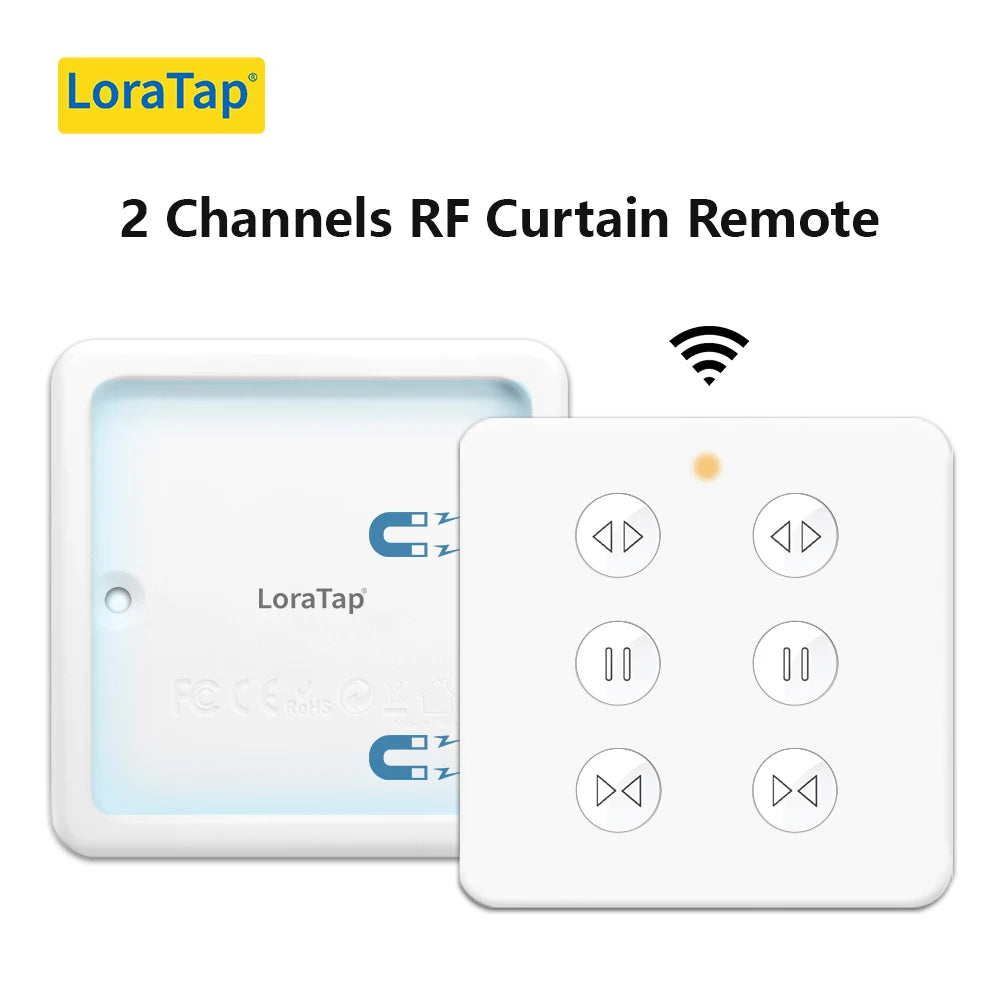

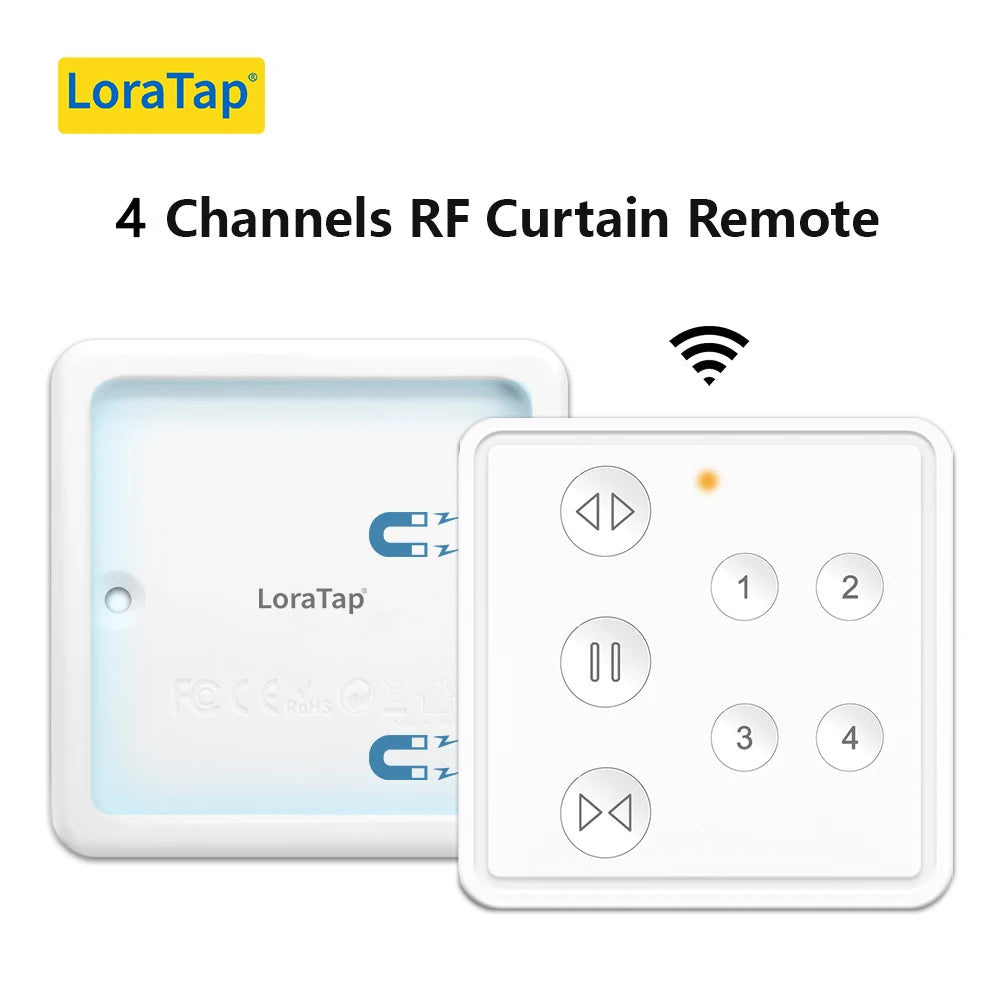

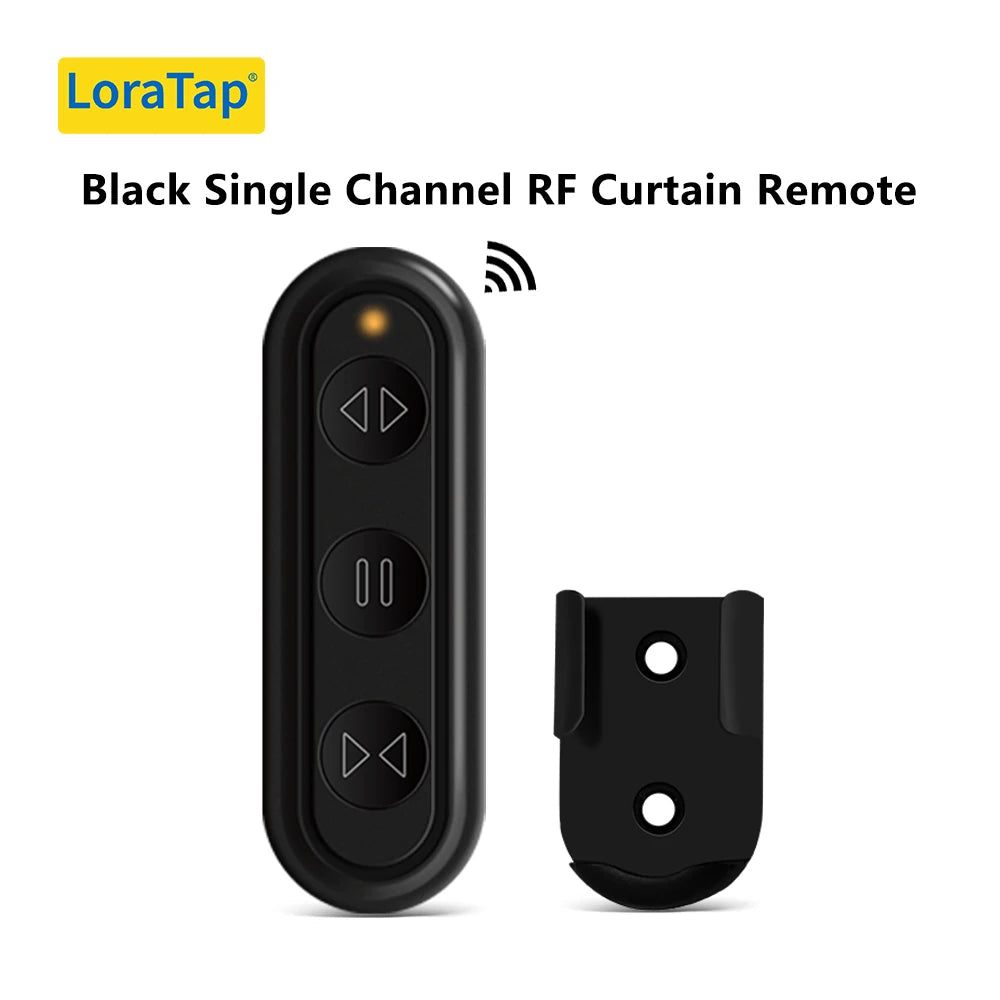

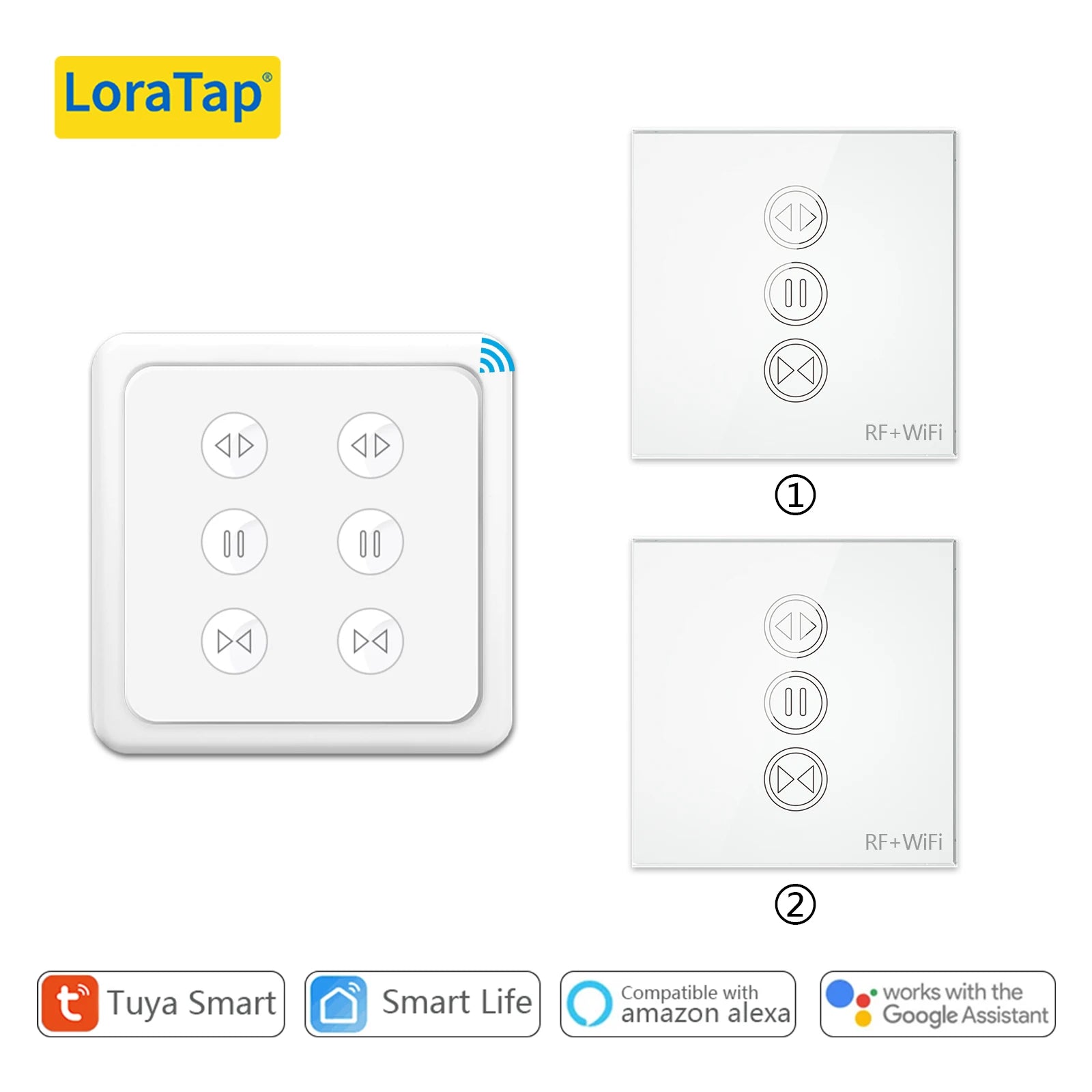

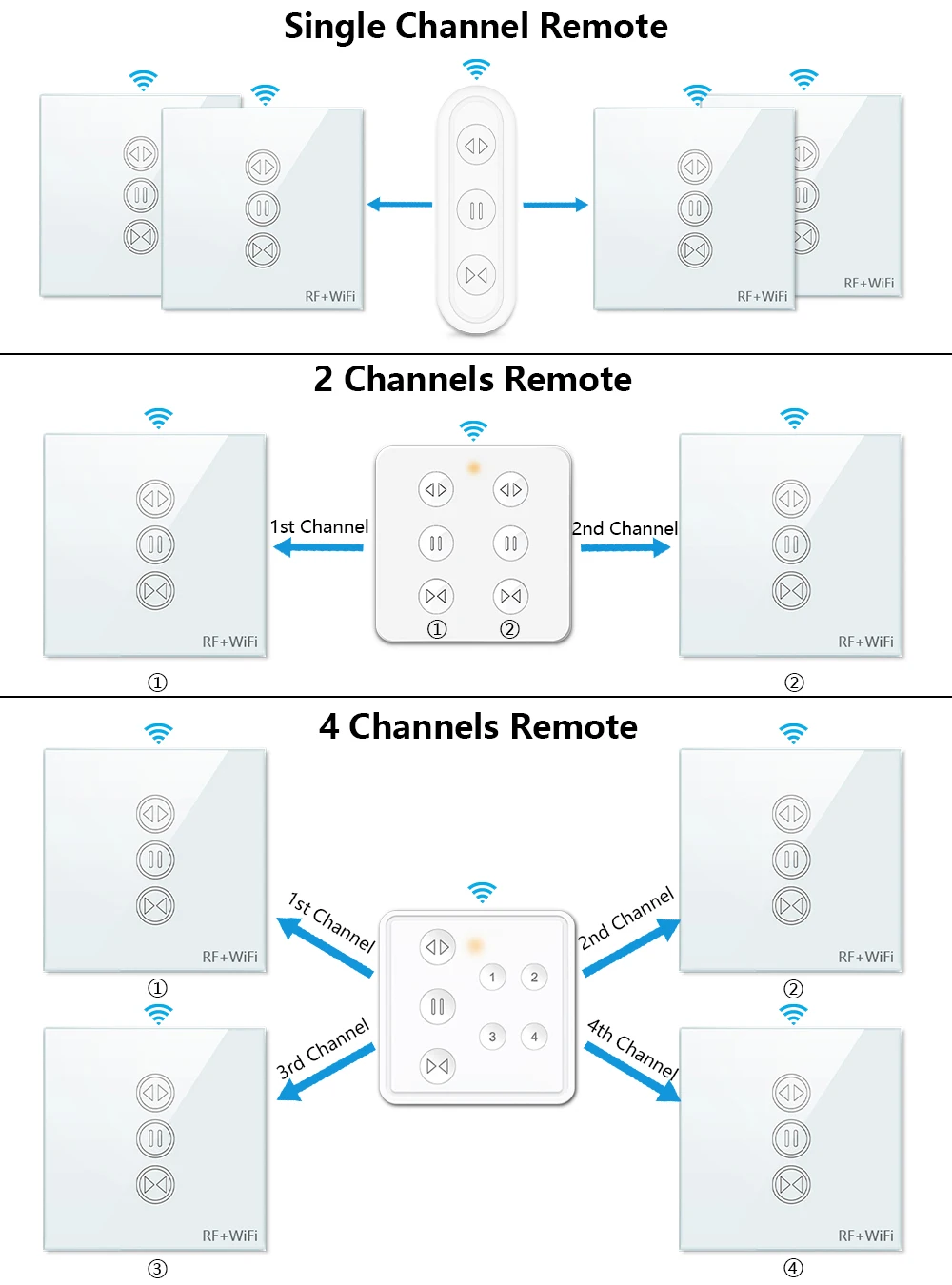

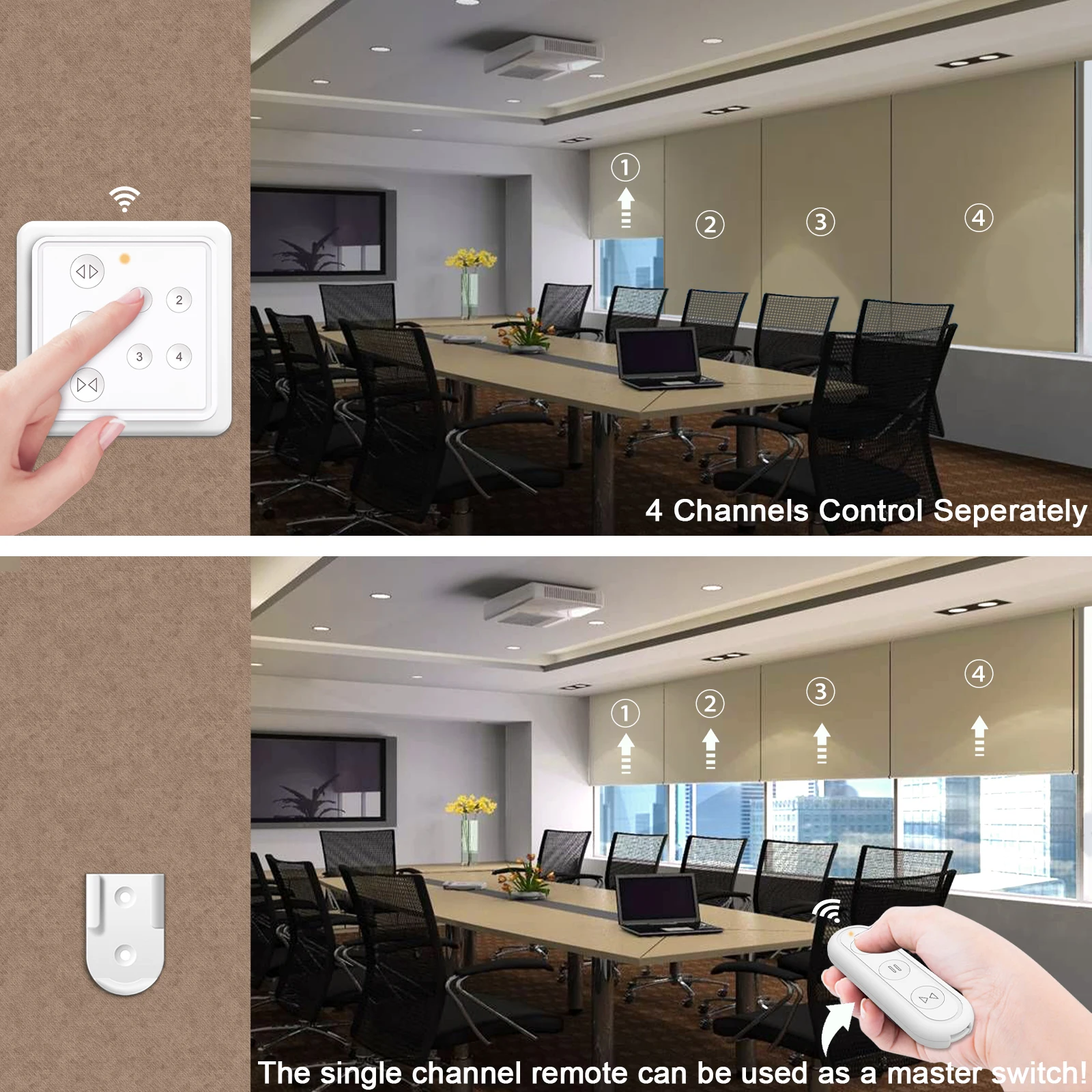

You can buy the extra single channel, 2 channels, and 4 channels RF curtain remote in this listing.
And you can pair the remotes with the RF & WiFi Roller Shutter Switch Flexibly.
Application
Installation Method
- Compatible with most of the 502 junction boxes.
- User Manual with 8 pages detailed instruction for how to connect curtain switch, how to connect App. 4 languages available, Spanish, French, Germany, and English. Please contact us if you have any special demand for the user guide.
Specification
Input voltage: 100-250 VAC, 50 / 60Hz
Max Load: 600 W
Wiring: Neutral Wire, L1, L2, Earth Wire
Wireless Protocol: Wi-Fi 2.4GHz(Not support 5Ghz)
RF Remote Frequency: 868Mhz(Legal Frequency Band in Europe)
App Name: Smart Life or Tuya
Voice Control: Google Home, Amazon Echo Alexa
Colour: White
Plastic Material: Fireproof ABS
Standby Consumption: below 0.5W
Switch Dimensions: 86mm * 86mm * 35mm
Certification: CE, RED, RoHS
Produced by ISO9001:2015 factory: Yes
Patented Product: Yes
We have all the accessories you need in the box, you don't need to pay extra cost.
What's in the Box?
1 * EU Standard RF+WiFi Curtain Switch(the quantity depend on your option)
1 * 3-Button Remote
1 * Lanyard
1 * Blue Cable for Wiring
1 * 3-pin Terminal
2 * Screw Kits
1 * User Guide
